CQ-VI4125N

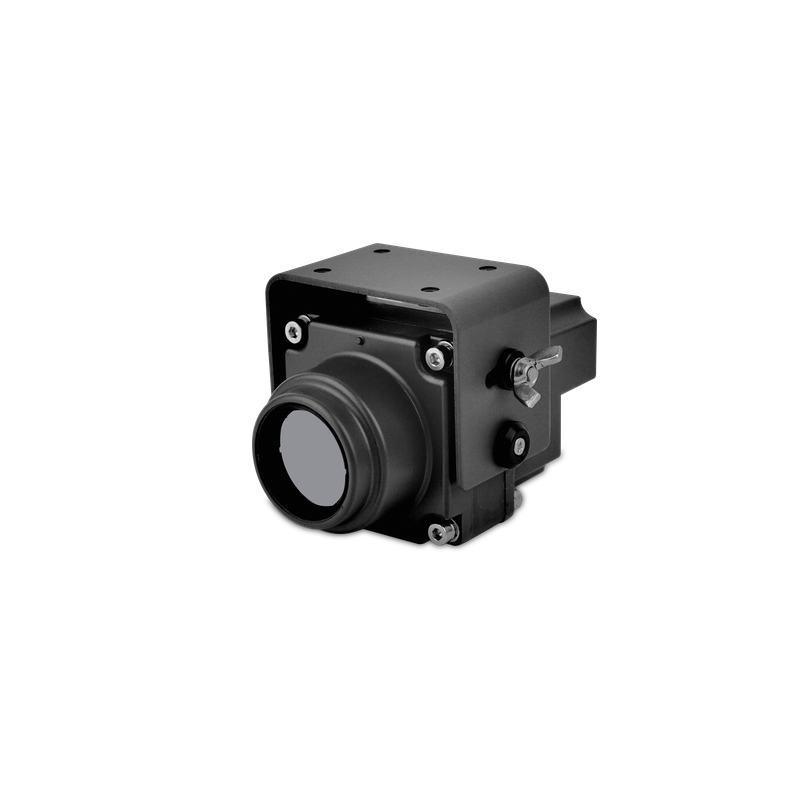

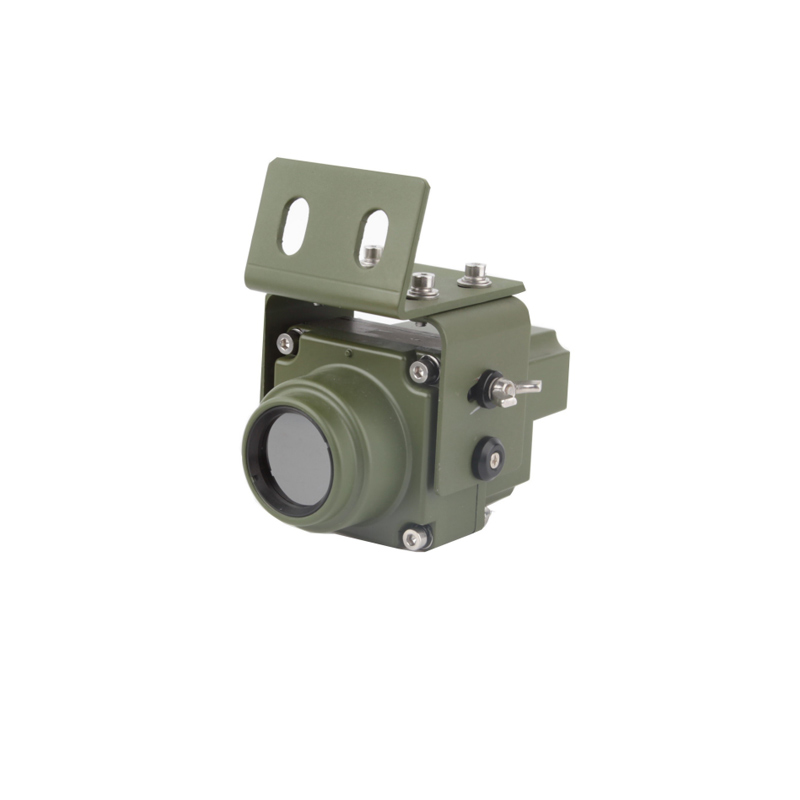

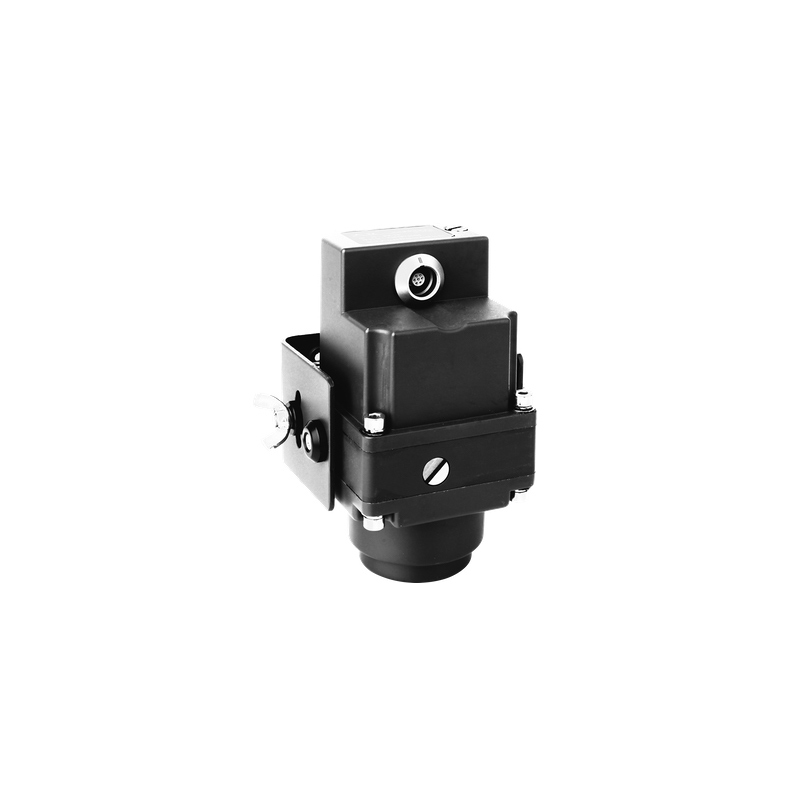

384x288 Fixed Intelligent In-car thermal imaging camera system

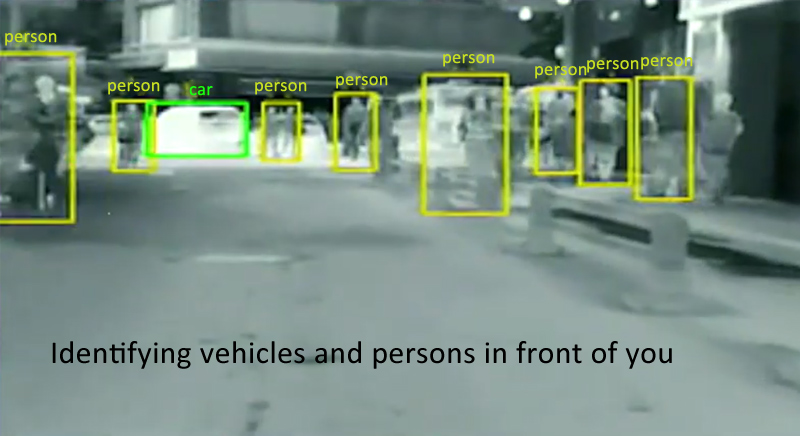

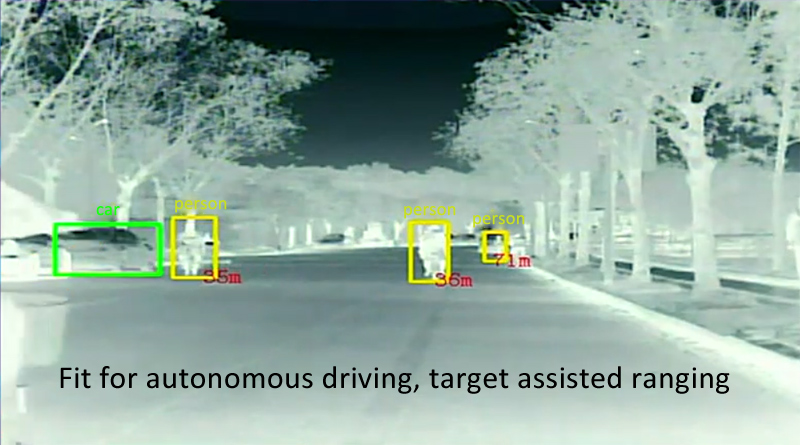

In-car thermal imaging system is an intelligent assistance system for night-time driving, identifying vehicles and pedestrians in front of you and providing alerts, regardless of the time of day or night, to improve overall driving safety.
| Item | CQ-VI4125N | |
| Detector | Type | Uncooled FPA |
| Resolution | 384×288 | |
| FOV | 37.9°×28.5° | |
| Focus | Fixed athermalized lens | |
| Frame Rate | 50Hz | |
| Focal Length | Fixed ( ≥6m ) | |
| Spectral Range | 8~14μm | |
| Calibration | Auto | |
| System | Startup Time | Image output time≤10s@30ºC |
| Power | External Power | DC 12~32V |
| Consumption | <6W | |
| Reverse Polarity Protection | With power reverse and over-voltage protection | |
| Environment | Working Temp | -41ºC~+65ºC |
| Storage Temp | -55ºC~+85ºC | |
| Humidity | ≥6500 h under salt spray conditions at +25°C, Relative humidity of 81% | |
| Protection Class | IP67 | |
| Shock Resistance | GJB150A-2009 | |
| Vibration Resistance | GJB150A-2009 | |
| Electromagnetic Compatibility | GJB151A | |
| Physical parameters | Weight | <700g |

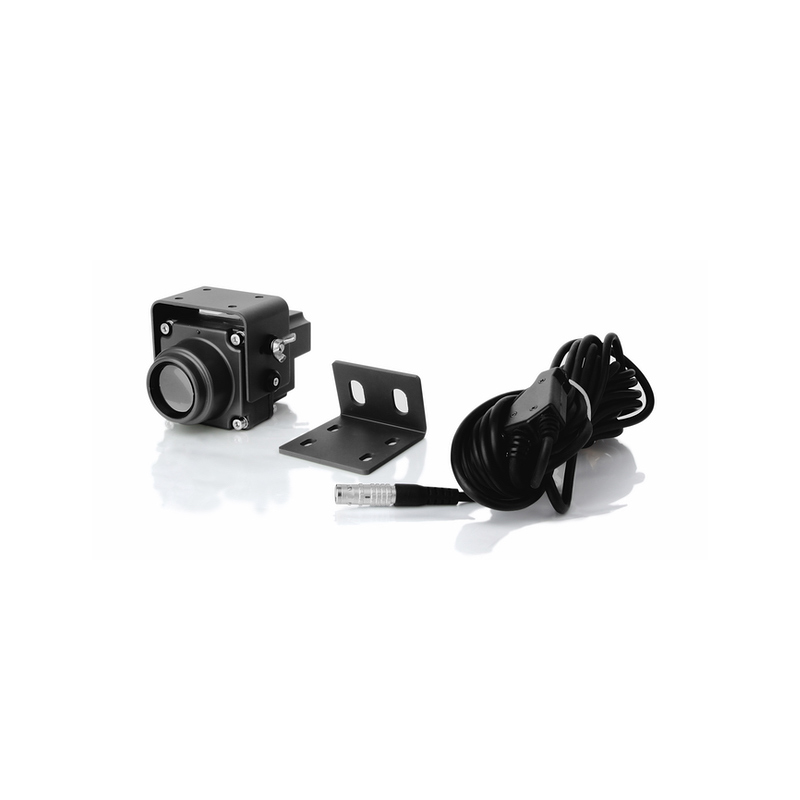

| Size | <64×64×115mm (w/o brackets, external cables) | |
| Interface | Power Port | Yes |
| Video Output | PAL | |
