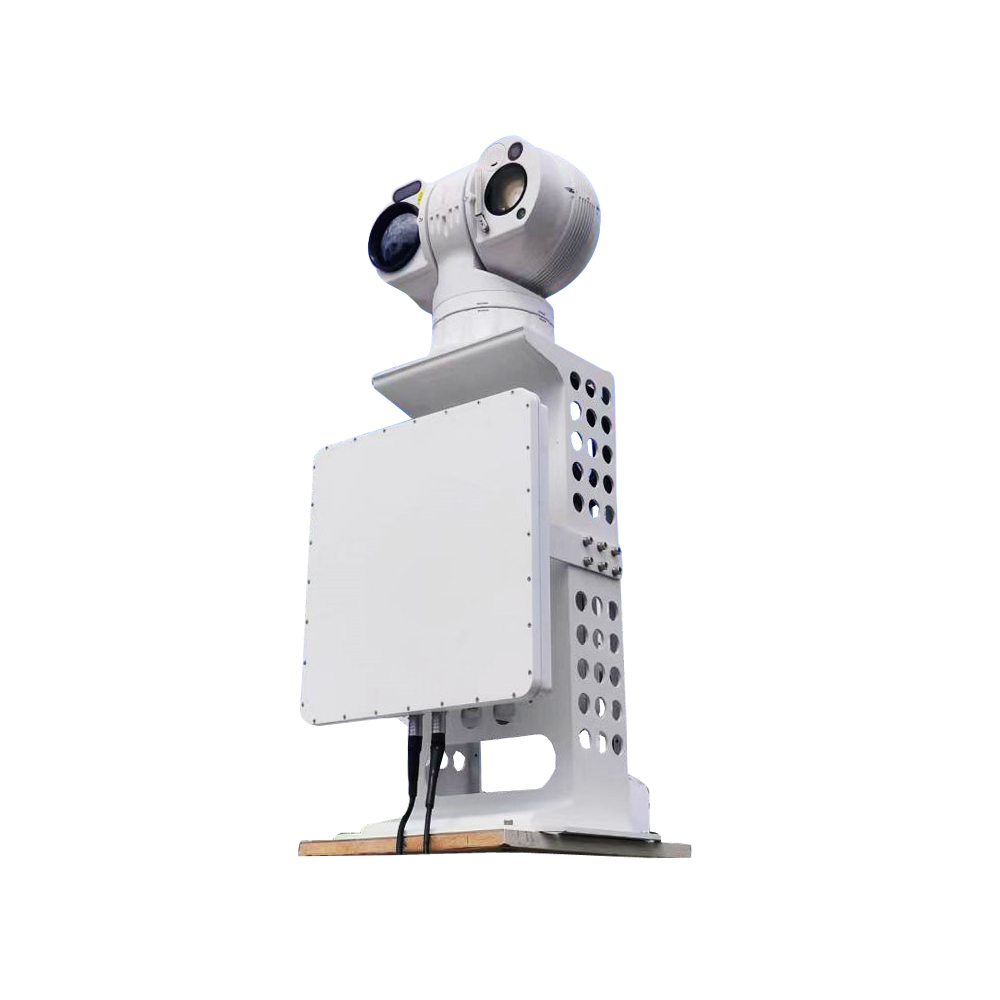

CQ-DMS61C05-07RD
| Model | CQ-DMS61C05-07RD | |
| Effective Distance | Camera/Vehicle | Detection: 4.2km; Recognition: 1.2km; Identification: 0.6km |
| Camera/Human | Detection: 1.6km; Recognition: 0.5km; Identification: 0.25km | |
| Radar | Human (RCS=0.5 m2): 500m; Vehicle (RCS=5m2): 700m | |
| IVS Range | 1.5km for Vehicle; 0.55km for Human | |
| Radar | Work Mode | FMCW |
| Target Information | Distance, Angle, Speed | |
| Frequency | 24~24.1Ghz | |
| Power | 30dBm | |
| Accuracy | 0.75m | |
| Distance resolution | 1.5x1.5m | |
| Wave Width | Horizon 90°each, 360°for four radar/ Pitch 13° | |
| Angle Accuracy | 1° | |
| Data Frequency | 8Hz | |
| Thermal Sensor | Sensor | Uncooled FPA sensor |
| Effective Pixels | 640x512 50Hz | |
| Pixel Size | 12μm | |
| NETD | ≤35mK | |
| Spectral Range | 7.5~14μm, MWIR | |
| Thermal Lens | Focal length | 50mm, 50Hz |
| FOV | 8.8°×7.0° | |
| Angular radian | 0.24mrad | |
| Digital Zoom | 1~8X continuous zoom (step 0.1) | |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H)x1080(V) | |
| Frame Rate | 32Kbps~16Mbps, 60Hz | |
| Min. Illumination | 0.05Lux (Color), 0.01Lux(B/W) | |
| SD Card | Support | |
| Visible Lens | Optical Lens | 5.5~180mm 32X |
| Image Stabilization | Support | |
| Defog | Support | |
| Focus Control | Manual/Auto | |
| Digital Zoom | 16X | |
| Laser | Effective Length | 300m |
| PTZ | Patrol | Support 16 cruise routes, each can support 256 preset positions |
| Rotation | Pan: 0~360°, tilt: -90~+90° | |
| Speed | Pan: 0.01~100°/S (max 200°/S), Tilt: 0.01~80°/S | |
| Preset | 3000 | |
| Enhance | Fan/Wiper/Heater attached | |
| Watch function | preset bit / pattern / cruise / vertical / frame/ panorama / apple skin/ sweep line scan | |
| Interface | Ethernet | RJ45 |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | |
| Video Output | PAL/NTSC | |
| Power | AC220V±20% | |
| Compression | H.265 / H.264 / MJPEG | |
| Environmental | Operate Temp | -25ºC~+55ºC |
| Storage Temp | -35ºC~+75ºC | |
| Humidity | <90% | |
| Ingress Protect | IP67 | |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |
| Anti-fog/salty | PH 6.5~7.2 | |
| Power | 160W(Peak) | |
| Size | 315mm×300mm×480mm | |
| Mounting | Front / side / wall / hanging / vehicle / tripod pro-rack | |
