CQ-DMSD61C100-2132D

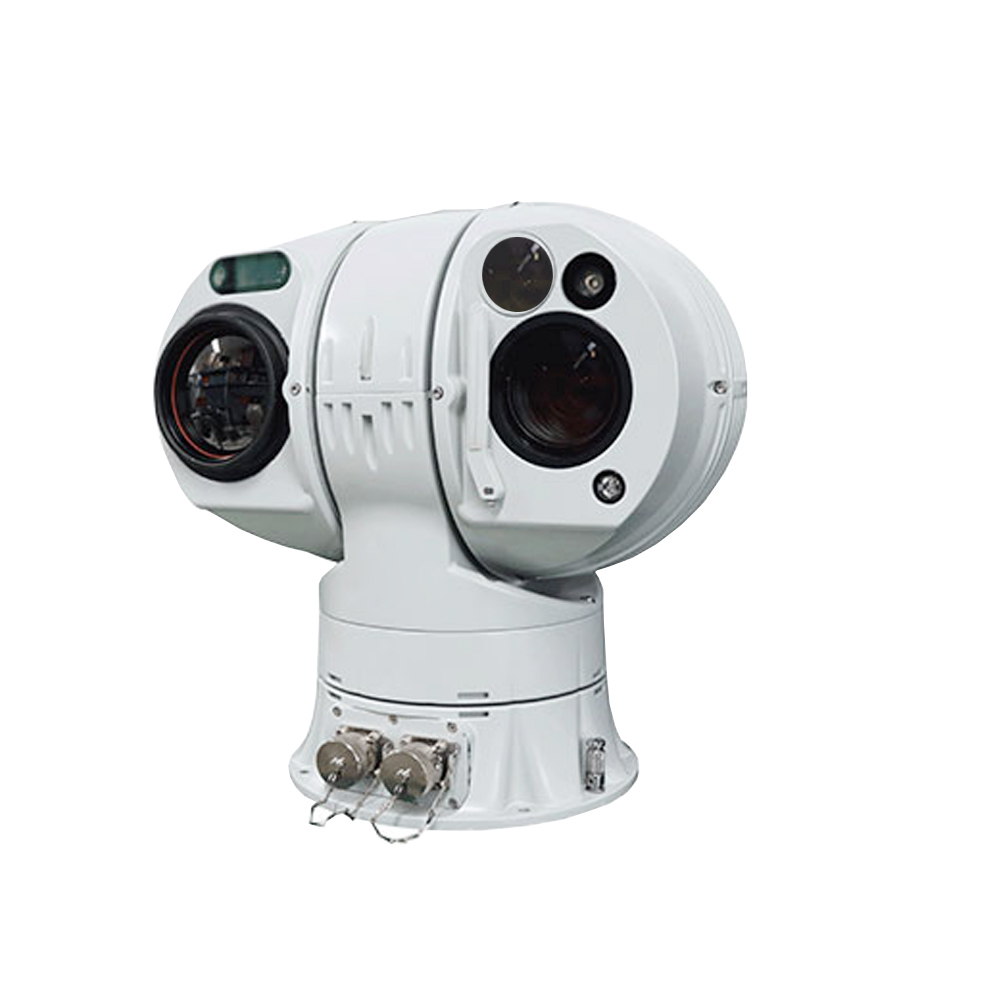

Intelligent Drone Tracking Thermal Camera
All-time, all-weather work: adopts intelligent thermal imaging, high-definition visible light, laser night vision multi-mode composite detection methods, and multiple methods complement each other to achieve full-time, all-weather, large-scale target rapid search and close-range detailed observation;
Highly intelligent: support regional intrusion detection; support drone, vehicle, ship, human, animal detection, classification, and identification; support target tracking, screening and filtering; support AR intelligent information fusion linkage;
Pitch: -90°~+90°, horizontal 360° continuous rotation, Level: 0.01°/s~100°/s; Tilt: 0.01°/s~80°/s, high-speed start and stop, self-adaptive focus and speed, accurate target positioning;
Using precision angle encoders, high-precision closed-loop servo control system, 0.02° positioning accuracy. High-performance image processing unit and high-precision focusing control mechanism achieves accurate automatic focusing.
| Model | CQ-DMSD61C100-2132D | |
| Effective Distance (DRI) | Vehicle (2.3*2.3m) | Detection: 8.6km; Recognition: 2.4km; Identification: 1.2km |
| Human (1.8*0.6m) | Detection: 3.4km; Recognition: 0.9km; Identification: 0.45km | |
| Drone Tracking (0.3*0.3m) | By thermal: 800m, By Visible: 2km (visibility≥20km; Humidity≤50%RH; Temperature Difference>6k) | |
| Thermal Sensor | Sensor | Uncooled FPA sensor |
| Effective Pixels | 640x512 50Hz | |
| Pixel Size | 12μm | |
| NETD | ≤30mK | |
| Spectral Range | 7.5~14μm, LWIR | |
| SDE / AGC | Support | |
| Pseudo Color | 16 pseudo color and B/W, B/W inverse | |
| Image Calibration | Support bad point calibration | |
| Image Setting | Support Contrast, brightness and other image setting | |
| Thermal Lens | Focal length | 100mm fixed |
| FOV | 4.4°×3.5° | |
| Angular radian | 0.12mrad | |
| Digital Zoom | 1~8X continuous zoom (step 0.1) | |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H) x 1080 (V) | |
| Frame Rate | 32Kbps~16Mbps, 60Hz | |
| Min. Illumination | 0.0005Lux (Color), 0.0001Lux (B/W) | |
| SD Card | Support | |
| Image Setting | Supports WDR, high light suppression, DNR, automatic WB | |
| Visible Lens | Optical Lens | 8~320mm 40X |
| Image Stabilization | Support | |
| Defog | Support | |
| Focus Control | Manual/Auto | |
| Digital Zoom | 16X | |
| Laser | Effective Length | 300m |
| Angle | 3°~65° | |
| PTZ | Patrol | Support 16 cruise routes, each can support 256 preset positions |
| Accuracy | 0.02°, pulse precision motor, digital angle measurement sensor servo | |
| Rotation | Pan: 0~360°, tilt: -90~+90° | |
| Speed | Pan: 0.01~100°/S (max 200°/S), Tilt: 0.01~80°/S | |
| Acceleration | 120/s° | |
| Zero Setting | Support the setting of pan and pitch zero | |
| Day/Night Patrol | 1-40 preset for day; 41-80 preset for night | |
| Preset | 3000 | |
| Enhance | Fan/Wiper/Heater attached | |
| Watch function | preset bit / pattern / cruise / vertical / frame/ panorama / apple skin/ sweep line scan | |
| Safety Control | Illegal access alarm | Lock time can be set or illegal access. |
| User management | Three levels of user rights: administrator, operator, and normal user. | |
| Security Mode | Support IP whitelist and blacklist, MAC whitelist and blacklist. | |
| Mis-login lockout | User mis-login lockout | |
| Interface | Ethernet | RJ45 |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | |
| Power | DC24V | |
| Compression | H.265 / H.264 / MJPEG | |
| Environmental | Operate Temp | -25ºC~+55ºC |
| Storage Temp | -35ºC~+75ºC | |
| Humidity | <95% | |
| Ingress Protect | IP67 | |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |
| Wind resistance | spherical, anti-shake, anti-33m/s strong wind | |
| Anti-fog/salty | PH 6.5~7.2 | |
| Power | 60W(Peak); 40W normal work | |
| Weight | 12kg | |
| Size | 314mm×312mmx200mm (L×W×H) | |
| Mounting | Front / side / wall / hanging / vehicle / tripod pro-rack | |
