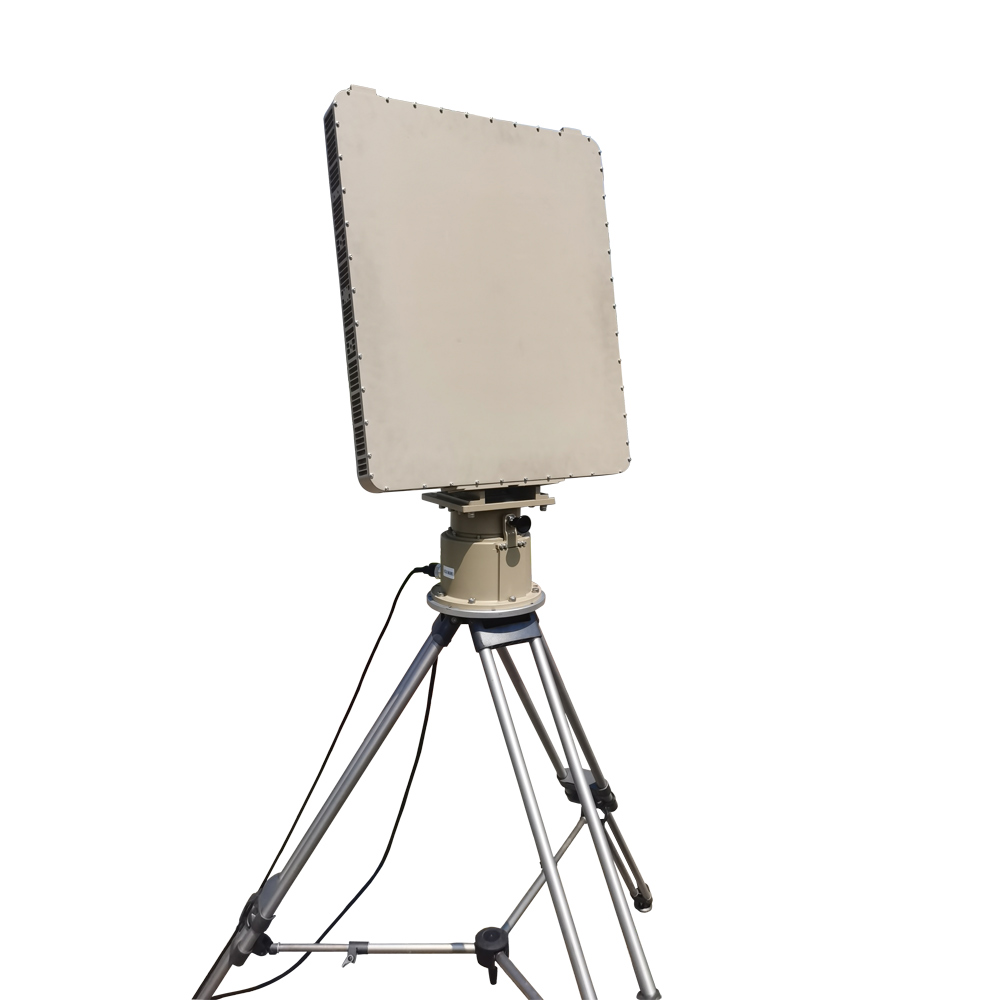

8km Uav Drone Detection Radar for Low-Altitute Air Surveillance with Frequency Modulated Continuous Wave

Radar System

Azimuth Mechanical Scanning, elevation digital beam forming (DBF) system

Technology

FMCW (Frequency Modulated Continuous Wave)

Operating Frequency

9.8-10G

Frequency Hopping Number

4

Elevation Coverage (Elevation FOV)

-3 ~ 60°

Azimuth Coverage (Horizontal FOV)

360°

Detection Altitude

≥2000m

Antenna Speed

30rpm (180°/s), can upgrade to 60rpm (360°/s)

Detection Range

≥8km (drone RCS=0.01m²)

≥12km (drone RCS=0.1m²)

≥15km (drone RCS=1m²)

≥15km (human)

≥15km (Helicopters, vehicles)

Blind Range

≤50m

Azimuth Accuracy

4°

Elevation Resolution

7°

Accuracy

Range Accuracy ≤5m(RMS)

Azimuth Accuracy ≤0.4° (RMS)

Pitch Accuracy ≤0.4° (RMS)

Detection Radial Velocity Range

1m/s - 150m/s

Target Tracking Capability

≥300 Batches

Transmit Power

≤30W

Power Consumption

≤330W

Power Supply

220V AC

Environmental Adaptability

Working temperature :-40 ~ +55℃

Protection Class

IP65(Host protection grade IP67)

Host Size

(Servo Turntable excluded)

540mm*675mm*85mm

Weight

≤35kg
