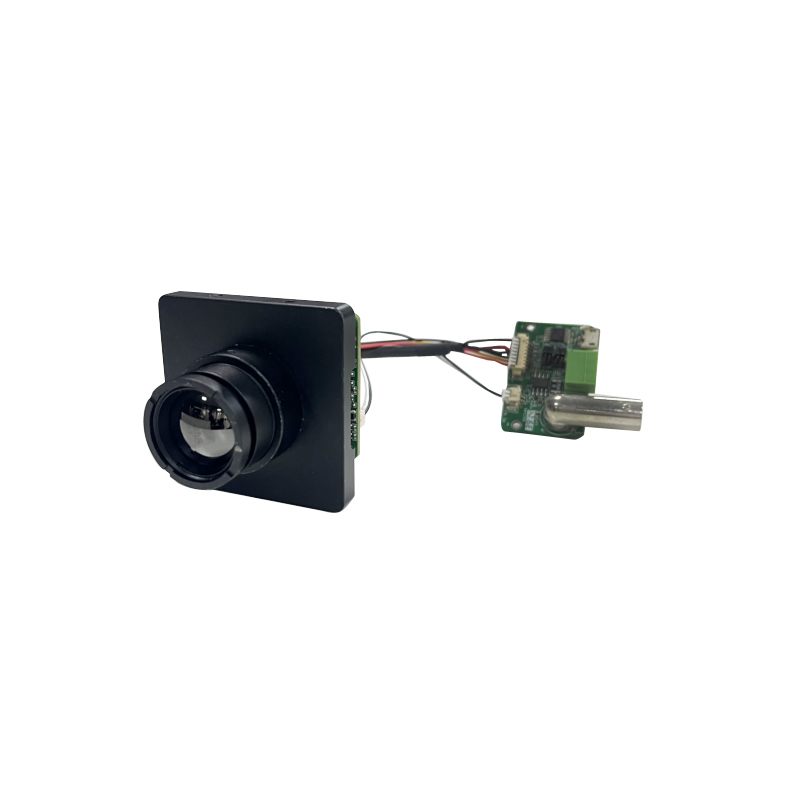

CQ-LTM6C17Z
| Model | CQ-LTM6C17Z | |
| Infrared Module | Image Sensor | α-Si detector |
| Resolution | 640x480 | |
| Pixel Pitch | 17μm | |
| Frame Rate | 50Hz | |
| Spectral Range | 8~14μm | |
| NETD | ≤40mK@30ºC | |
| mage Processing | Bad Pixel Correction | Yes |
| Non-uniformity Correction | Yes | |
| Digital Detail Enhancement | Yes | |
| Functions | Digital Zoom | 1~8x |
| Image Calibration | Yes | |
| Brightness / Contrast Adjustment | Yes | |
| Polarity | White hot / Black hot / False colr | |
| OSD | Display / Hide / Move | |
| Shutterless Calibration | Yes (No shutter) | |
| Power | Supply Voltage | DC9-12V |
| Power Dissipation | 1.8W @ Stable working condition | |
| Reverse Connection Protection | Yes | |
| Interface | USB | Micro-USB |
| Video Simulation Interface | CVBS 50Hz (PAL) / 60Hz (NTSC) | |
| Control Command Interface | RS485/232 is adjustable. default: RS232, and it can be connected to an external keyboard | |
| Video Output Interface | USB video device class (USB2.0 UVC) | |
| Communication Interface | UART (3.3V) / RS422(3.3V) with connector board | |
| Environmental Parameter | Operating Temp. | -40ºC ~ +60ºC |
| Storage Temp. | -50ºC ~ +70ºC | |
| Physical Characteristics | Weight | ≤168g (without lens) |
| Dimension (without lens) | 60mmx50mmx50mm (excluding lens and connector board) | |
