CQ2001

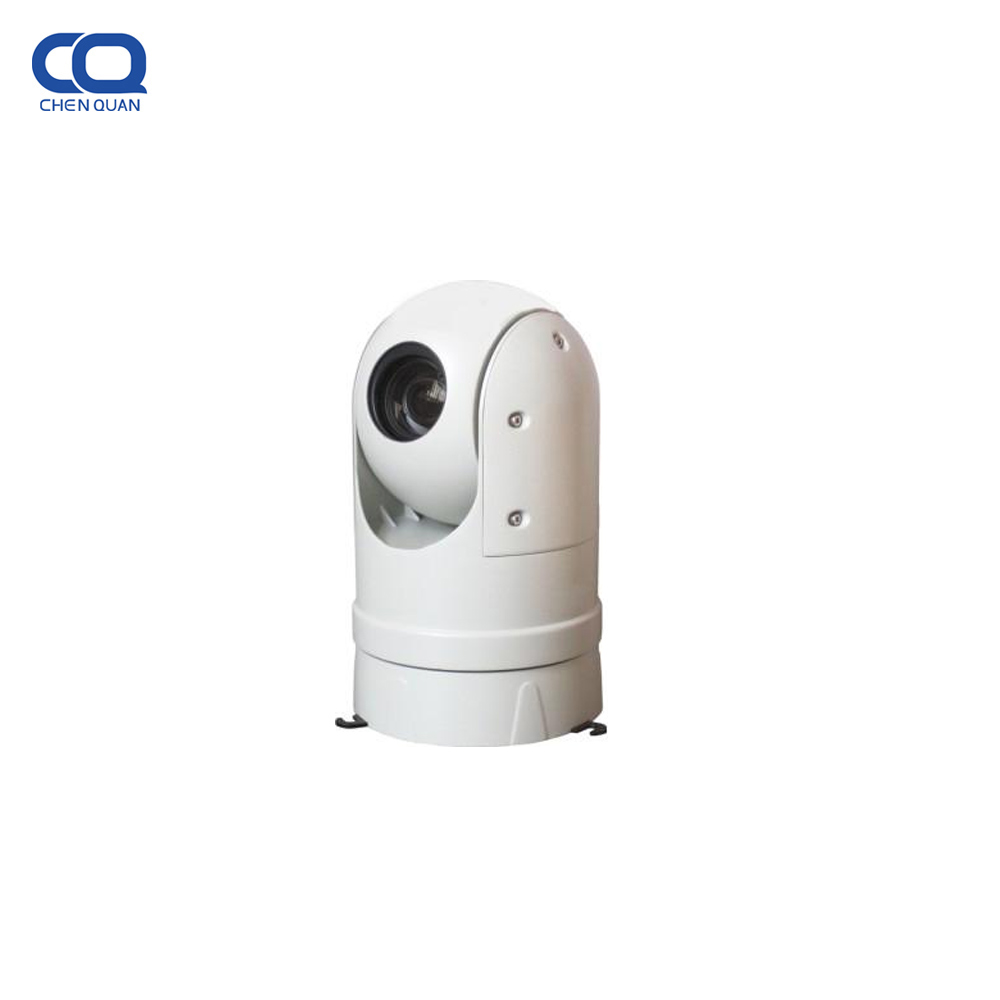

Rugged, all-weather portable PTZ camera system featuring an thermal imaging camera, enabling excellent detection ability, especially at night.
The Thermal is an incredibly useful surveillance technology that allows the user to quickly and easily spot objects that are warmer than their environment like humans, animals and vehicles. Thermal cameras are also unaffected by extreme lighting conditions like darkness or bright lights.

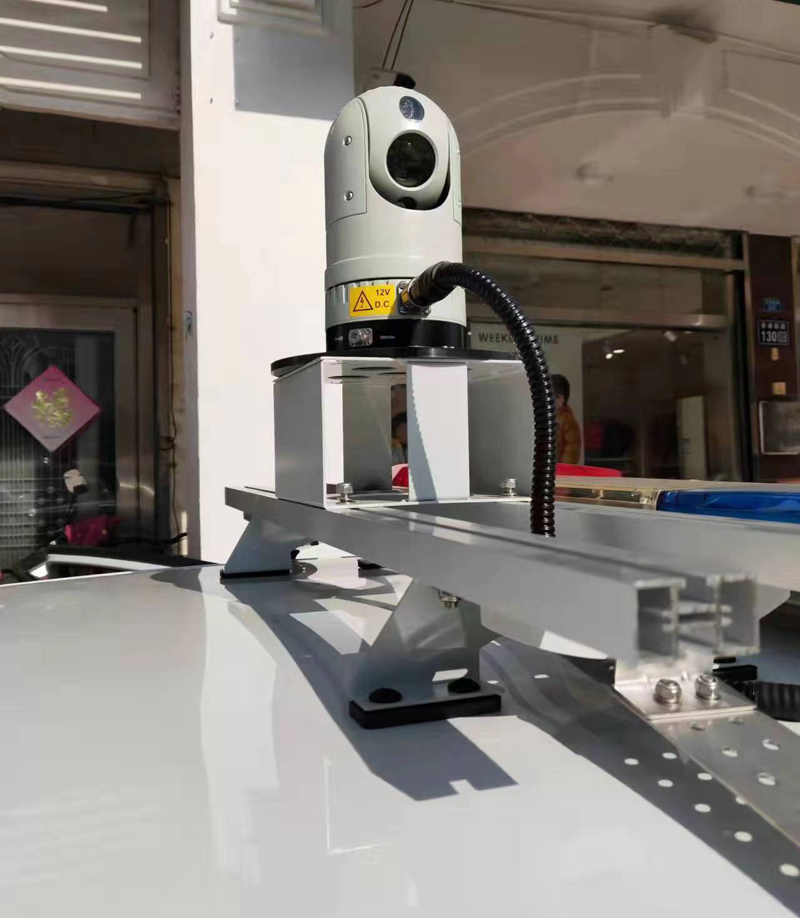

Small enough for mobile deployment, this rugged PTZ camera excels in both practical and extreme applications. Ideal for mobile field surveillance, rapid deployment situations, and anywhere else a compact, high performance PTZ is needed, it will not disappoint.
| Model | CQ2001 |
| Detector | Vanadium oxide uncooled infrared focal plane detector |
| Pixel | 12um |
| Frame Rate | 50Hz |
| Lens Resolution | 384x288 (640*512 optional) |
| Focal Length | 25mm |
| F | F1.0 |
| FOV | 17.4°×14° |
| Instant FOV | 0.480mrad |
| Network Interface | RJ45 |
| WIFI | Support |
| Horizontal Range | 360° continuous rotation |
| Horizontal Speed | 0 ~150°/s |
| Vertical Range | -20°~+90° |
| Vertical Speed | 0 ~150°/s |
| Preset Positions | 255 |
| Preset Position Accuracy | ±0.3° |
| Light Complement Distance | Max. 50 meters |
| Control Interface | Network, support WIFI |
| Power Supply | DC12V-24V wide range voltage |
| Weight | ≤3.2KG |
| Working Temperature | -35ºC~65ºC |
| Rain Wiper | support |
| Heater | Support intelligent temperature control |
| Lightning Protection Level | 4kv surge |
| Protection Class | IP66 |
Rugged, all-weather portable PTZ camera system featuring an thermal imaging camera, enabling excellent detection ability, especially at night.
The Thermal is an incredibly useful surveillance technology that allows the user to quickly and easily spot objects that are warmer than their environment like humans, animals and vehicles. Thermal cameras are also unaffected by extreme lighting conditions like darkness or bright lights.
Small enough for mobile deployment, this rugged PTZ camera excels in both practical and extreme applications. Ideal for mobile field surveillance, rapid deployment situations, and anywhere else a compact, high performance PTZ is needed, it will not disappoint.
| Model | CQ2001 |
| Detector | Vanadium oxide uncooled infrared focal plane detector |
| Pixel | 12um |
| Frame Rate | 50Hz |
| Lens Resolution | 384x288 (640*512 optional) |
| Focal Length | 25mm |
| F | F1.0 |
| FOV | 17.4°×14° |
| Instant FOV | 0.480mrad |
| Network Interface | RJ45 |
| WIFI | Support |
| Horizontal Range | 360° continuous rotation |
| Horizontal Speed | 0 ~150°/s |
| Vertical Range | -20°~+90° |
| Vertical Speed | 0 ~150°/s |
| Preset Positions | 255 |
| Preset Position Accuracy | ±0.3° |
| Light Complement Distance | Max. 50 meters |
| Control Interface | Network, support WIFI |
| Power Supply | DC12V-24V wide range voltage |
| Weight | ≤3.2KG |
| Working Temperature | -35ºC~65ºC |
| Rain Wiper | support |
| Heater | Support intelligent temperature control |
| Lightning Protection Level | 4kv surge |
| Protection Class | IP66 |
