CQ-ZS27-41C07-32x46-LRF

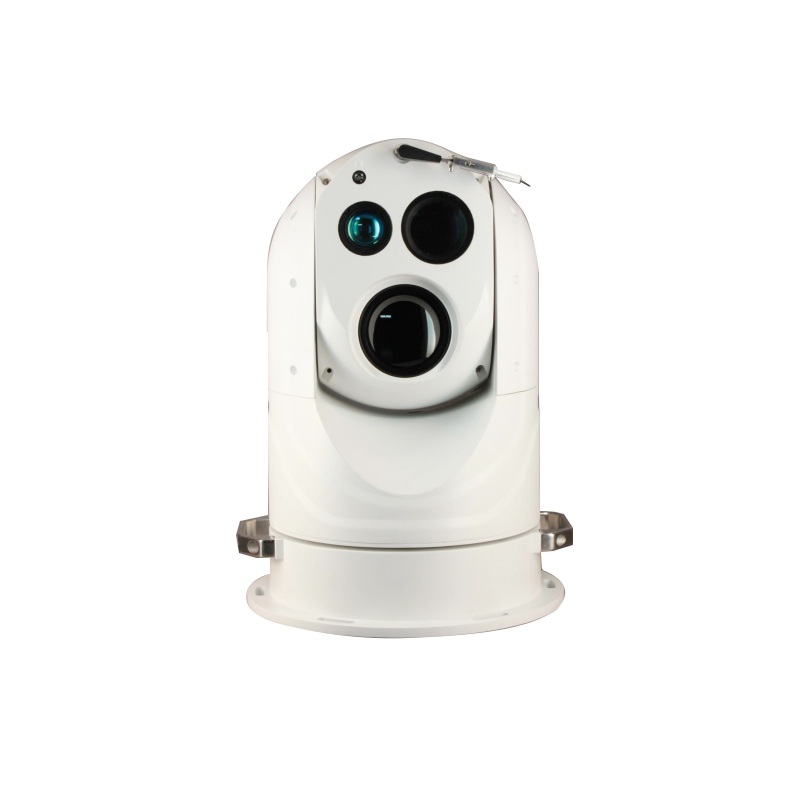

Front
Back
Model No. | CQ-ZS27-41C07-32x46-LRF | |
Thermal Imaging | Detector Type | VOx Uncooled Infrared FPA |
Pixel Resolution | 384*288 | |
Pixel Pitch | 12μm | |
Detector Frame Rate | 50Hz | |
Response Spectra | 8~14μm | |
NETD | ≤50mK@25℃,F#1.0 | |
Focal Length | 75mm | |
FOV | 3.5°x2.6° | |
Image Adjustment | Brightness & Contrast Adjustment | Manual/Auto0/Auto1 |
Polarity | Black hot/White hot | |
Palette | Support (18 types) | |
Reticle | Reveal/Hidden/Shift | |
Digital Zoom | 1.0~8.0× Continuing Zooming (step 0.1), zoom in any area | |
Image Processing | NUC | |
Digital Filter and Imaging Denoising | ||
Digital Detail Enhancement | ||
Image Mirror | Right-left/Up-down/Diagonal | |
Daytime Camera | Image Sensor | 1/2.8″progressive scan CMOS |
Effective Pixels | 1920×1080P 25Hz 2MP | |
Min.Illumination | Color:0.001LUX B/W:0.0005LUX | |
Auto Control | AWB, auto gain, auto exposure | |
SNR | ≥55dB | |
Wide Dynamic Range(WDR) | 120dB | |
HLC | OPEN/CLOSE | |
BLC | OPEN/CLOSE | |
Noise Reduction | 3D DNR | |
Electric Shutter | 1/25~1/100000s | |
Day & Night | Filter Shift | |
Focus Mode | Auto/Manual | |
Focal Length | 7mm to 322mm, 46× optical zoom | |
Horizontal FOV | 42°(wide-tele)~1°(far-end) | |
Aperture Ratio | Max. F1.8-F6.5 | |
Laser Ranger Finder | Distance | 1000 meters |
PTZ | Pan Range | 360° (endless) |
Pan Speed | 0.05°~150°/s | |
Tilt Range | -60°~90° rotation (includes wiper) | |
Tilt Speed | 0.05°~150°/s | |
Positioning Accuracy | 0.1° | |
Zoom Ratio | Support | |
Presets | 255 | |
Patrol Scan | 16 | |
All-round Scan | 16 | |
Auto Induction Wiper | Support | |
Gyro Stabilization | Gyro Stabilization | 2 axis |
Stabilized Frequency | <=1HZ | |
Gyro Steady-state Accuracy | 0.5° | |
Max Speed Following of Carrier | 100°/s | |
Network | Protocols | IPv4, HTTP, FTP, RTSP,DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP |
Video Compression | H.264 | |
Power Off Memory | Support | |
Network Interface | RJ45 10Base-T/100Base-TX | |
Maximum Image Size | 1920×1080 | |
FPS | 25Hz | |
Compatibility | ONVIF, GB/T 28181, GA/T1400 | |
General | Alarm | 1 input, 1 output |
External Interface | RS422 | |
Power | DC24V±15%,5A | |
PTZ Consumption | Typical consumption:28W, Turn on PTZ and heat up:60W, Laser heating at full power:92W | |
Protection Level | IP67 | |
EMC | Lightning protection, surge protection and voltage transient protection | |
Anti-salt Fog(optional) | 720H continuity test, Severity( 4) | |
Working Temperature | -40℃~70 ℃ | |
Humidity | Humidity <90% or less | |
Dimension | 446mm×326mm×247(includes wiper) | |
Weight | 15KG |
Front
Back
Model No. | CQ-ZS27-41C07-32x46-LRF | |
Thermal Imaging | Detector Type | VOx Uncooled Infrared FPA |
Pixel Resolution | 384*288 | |
Pixel Pitch | 12μm | |
Detector Frame Rate | 50Hz | |
Response Spectra | 8~14μm | |
NETD | ≤50mK@25℃,F#1.0 | |
Focal Length | 75mm | |
FOV | 3.5°x2.6° | |
Image Adjustment | Brightness & Contrast Adjustment | Manual/Auto0/Auto1 |
Polarity | Black hot/White hot | |
Palette | Support (18 types) | |
Reticle | Reveal/Hidden/Shift | |
Digital Zoom | 1.0~8.0× Continuing Zooming (step 0.1), zoom in any area | |
Image Processing | NUC | |
Digital Filter and Imaging Denoising | ||
Digital Detail Enhancement | ||
Image Mirror | Right-left/Up-down/Diagonal | |
Daytime Camera | Image Sensor | 1/2.8″progressive scan CMOS |
Effective Pixels | 1920×1080P 25Hz 2MP | |
Min.Illumination | Color:0.001LUX B/W:0.0005LUX | |
Auto Control | AWB, auto gain, auto exposure | |
SNR | ≥55dB | |
Wide Dynamic Range(WDR) | 120dB | |
HLC | OPEN/CLOSE | |
BLC | OPEN/CLOSE | |
Noise Reduction | 3D DNR | |
Electric Shutter | 1/25~1/100000s | |
Day & Night | Filter Shift | |
Focus Mode | Auto/Manual | |
Focal Length | 7mm to 322mm, 46× optical zoom | |
Horizontal FOV | 42°(wide-tele)~1°(far-end) | |
Aperture Ratio | Max. F1.8-F6.5 | |
Laser Ranger Finder | Distance | 1000 meters |
PTZ | Pan Range | 360° (endless) |
Pan Speed | 0.05°~150°/s | |
Tilt Range | -60°~90° rotation (includes wiper) | |
Tilt Speed | 0.05°~150°/s | |
Positioning Accuracy | 0.1° | |
Zoom Ratio | Support | |
Presets | 255 | |
Patrol Scan | 16 | |
All-round Scan | 16 | |
Auto Induction Wiper | Support | |
Gyro Stabilization | Gyro Stabilization | 2 axis |
Stabilized Frequency | <=1HZ | |
Gyro Steady-state Accuracy | 0.5° | |
Max Speed Following of Carrier | 100°/s | |
Network | Protocols | IPv4, HTTP, FTP, RTSP,DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP |
Video Compression | H.264 | |
Power Off Memory | Support | |
Network Interface | RJ45 10Base-T/100Base-TX | |
Maximum Image Size | 1920×1080 | |
FPS | 25Hz | |
Compatibility | ONVIF, GB/T 28181, GA/T1400 | |
General | Alarm | 1 input, 1 output |
External Interface | RS422 | |
Power | DC24V±15%,5A | |
PTZ Consumption | Typical consumption:28W, Turn on PTZ and heat up:60W, Laser heating at full power:92W | |
Protection Level | IP67 | |
EMC | Lightning protection, surge protection and voltage transient protection | |
Anti-salt Fog(optional) | 720H continuity test, Severity( 4) | |
Working Temperature | -40℃~70 ℃ | |
Humidity | Humidity <90% or less | |
Dimension | 446mm×326mm×247(includes wiper) | |
Weight | 15KG |
