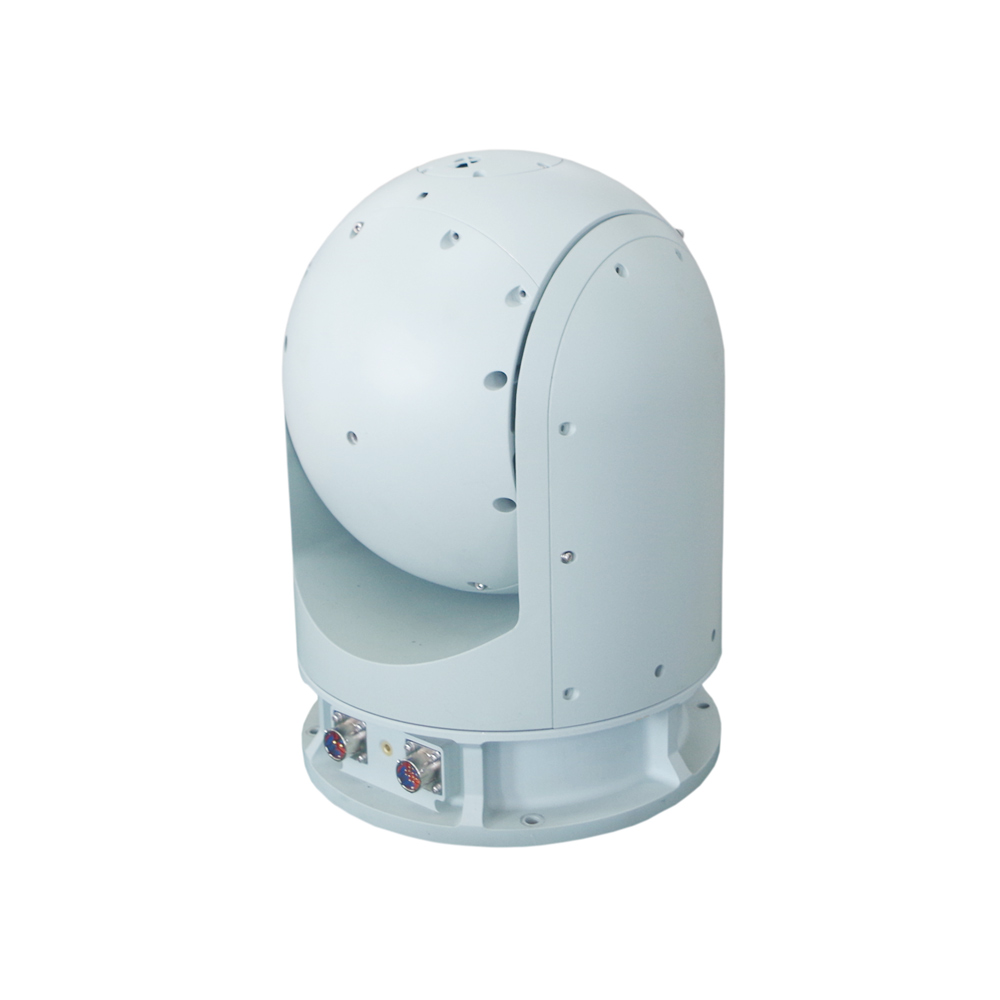

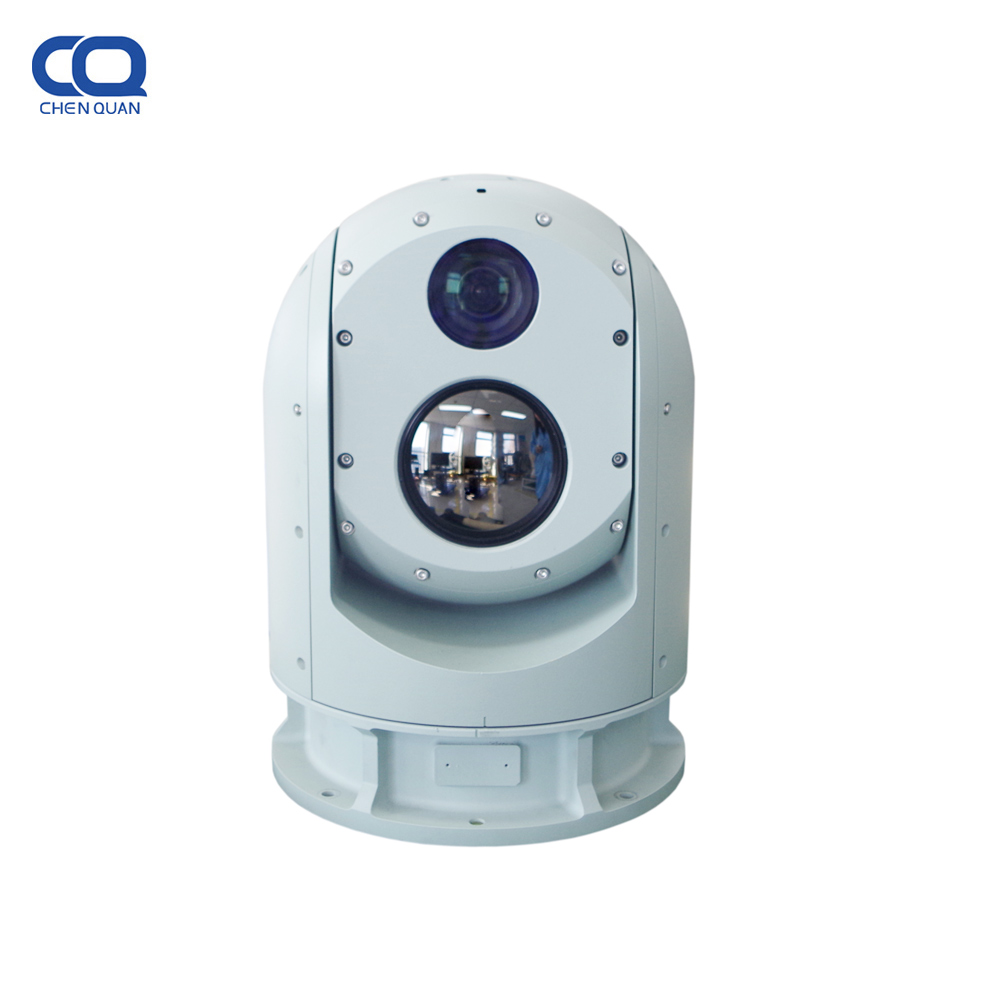

CQ-ZS40-TVC65C11-2132
This series Long Range Thermal Imaging Camera products with continuous zoom infrared optical technology. It also equipped with high resolution daylight camera with defog function for long distance daytime details observation. The camera can be updated to 0.02°/s for target tracking and optional for 2-axis gyro-image stabilization functions on the application of ship / boat / vehicle mounted.
Smart function:
Support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering function; support target temperature filtering.
| Model | CQ-ZS40-TVC65C11-2132 | |
| Effective Distance (DRI) | Vehicle (2.3*2.3m) | Detection: 8.6km; Recognition: 2.4km; Identification: 1.2km |
| Human (1.8*0.6m) | Detection: 3.4km; Recognition: 0.9km; Identification: 0.45km | |
| Ship (20*5m) | Detection: 16km; Recognition: 6.3km | |
| Thermal Camera | Sensor | Vox Detector |
| Effective Pixels | 640x512 | |
| Pixel Size | 12μm | |
| NETD | ≤35mK | |
| Spectral Range | 7~14μm, LWIR | |
| Pseudo Color | 16 pseudo color and B/W, B/W inverse | |
| AGC | Support | |
| Digital Zoom | 8X | |
| Strong Light Protect | Support | |
| Temp Correction | Thermal imaging clarity is not affected by temperature | |
| Lens Servo | Support lens preset, focal length return and location | |
| Azimuth Information | Support angle real-time return and positioning | |
| Parameter Setting | OSD Menu Remote Call Operations | |
| Life Index Recording | Working/shutter times, ambient/sensor temperature | |
| Functions | Support PIP, Image fusion, Ruler Scale | |
| Thermal Lens | Focal length | 21~105mm Zoom |
| FOV | 19.5°×15.6°~4.2°×3.3° | |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS |
| Resolution | 1920(H)x1080(V) | |
| Frame Rate | 32Kbps~16Mbps, 60Hz | |
| Min. Illumination | 0.005Lux (Color), 0.01Lux(B/W) | |
| Defog | Support SDE digital image processing | |
| BLC/WDR/HLC/AGC | Yes | |
| Digital Zoom | 16X | |
| Visible Lens | Lens Size | 8~320mm 40X |
| Image Stabilization | Support | |
| Focus Control | Manual/Auto | |
| PTZ | Patrol | Auto-patrol; 8 models patrol way |
| Rotation | Pan: 0~360°, tilt: -90~+90° | |
| Speed | Pan: 0.01~90°/S, Tilt: 0.01~90°/S | |
| Preset | 255 | |
| Accuracy | 0.02° | |
| Gyro | Accuracy-1mrad (RMS), two-axis gyro stable, shake≤±10° | |
| Interface | Ethernet | RJ45 |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | |
| Power | DC48V | |
| Video | Thermal Resolution | 1920×1080; 1280×1024; 1280×960; 1024×768; 1280×720; 704×576; 640×512; 640×480; 400×300; 384×288; 352×288; 352×240 |
| Visible Resolution | 2592×1520; 2560×1440; 1920×1080; 1280×1024; 1280×960; 1024×768; 1280×720; 704×576; 640×512; 640×480; 400×300; 384×288; 352×288; 352×240 | |
| Record Rate | 32Kbps~16Mbps | |
| Audio encoding | G.711A / G.711U / G726 | |
| OSD settings | Support OSD display settings for channel name, time, gimbals orientation, field of view, focal length, and preset bit name settings | |
| Environmental | Operate Temp | -40ºC~+55ºC |
| Storage Temp | -45ºC~+75ºC | |
| Humidity | <90% | |
| Ingress Protect | IP67 | |
| Weight | 20kg | |
| Anti-fog/salty | PH 6.5~7.2 | |
| Power | 400W (Peak); 150W (Normal) | |
| Dimension | Ф272mm×380mm | |
