CQ-TCVI6

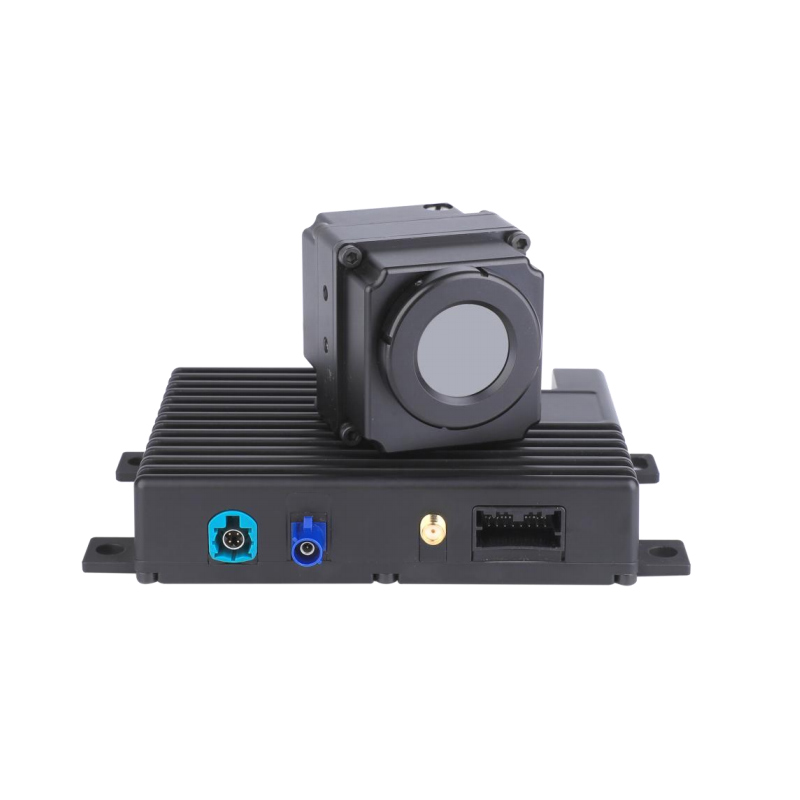

The vehicle thermal night vision system is an intelligent assistance system for safe driving of vehicles at night, which can help vehicles recognize the preceding vehicles and pedestrians day and night and alert them.
Feature
Support wireless WIFI video transmission and real-time monitoring via APP;

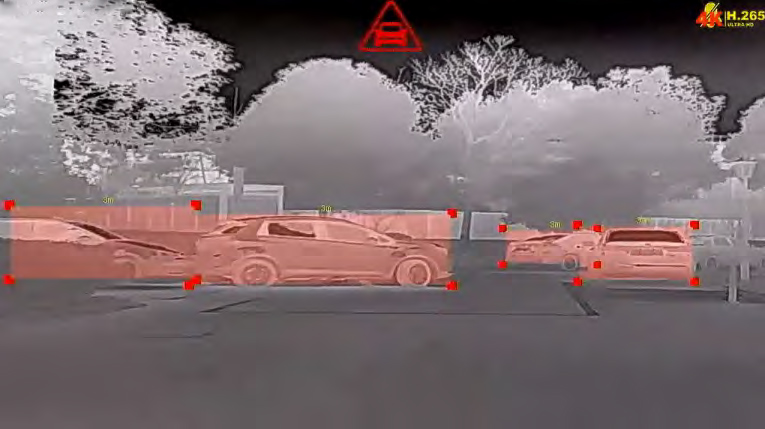

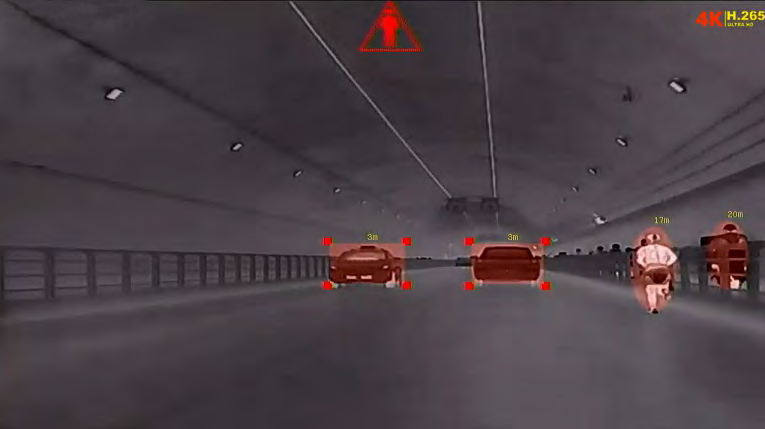

Built deep learning algorithms for pedestrian and vehicle detection, providing early warning for existing dangers.
Application
Suitable for advanced automotive assisted driving and autonomous driving fields, such as:
Heavy duty engineering trucks: When using navigation, the infrared night vision system clearly imaging to enhance the driver's recognition in the dust and smoke condition, ensuring the safety of pedestrians and vehicles.
Model | CQ-TCVI6 | |
Observation Distance | Vehicle (2.3x2.3m) | Detection: 400m; Recognition: 120m |
Human (1.8x0.5m) | Detection: 300m; Recognition: 90m | |
* (Atmospheric conditions: 25℃, 1atm, visibility 10km, 60%RH | ||
Detector | Resolution | 640x512 |
Pixel Pitch | 17μm | |
NETD | ≤50mK | |
FOV | 32°x24.2°, ±5% | |
Focus Length | 19mm | |
Image Processing | Palettes | White hot, black hot iron red an others |
Image Adjustment | Automatic adjustment of brightness and contrast | |
Image Enhancement | Automatic | |
System Performance | Window heating | Yes |
Image Output | AHD format, 720P, frame rate 30Hz | |
Warning | Detection in driving | |
Power Supply | Power Input | DC24V, range from 9V ~ 32V |
Power Consumption | ≤6W (≤10W heating and defrosting) | |
External Interfaces | Power | Rated DC24V, range from 9V~32V) |
Video | AHD | |
Control Bus | RS485 | |
WIFI | Support Android / Apple Apps | |
Environmental | Working Temp. | -40℃~85℃ |
Protection Grade | IP69K | |
Physical Weight | ≤252g | |
Dimension | ≤72 x 51 x 64mm | |
Control Assemble | Protection Grade | IP40 |
Weight | ≤380g | |
Dimension | ≤152 x 101 x 28mm | |
The vehicle thermal night vision system is an intelligent assistance system for safe driving of vehicles at night, which can help vehicles recognize the preceding vehicles and pedestrians day and night and alert them.
Feature
Support wireless WIFI video transmission and real-time monitoring via APP;
Built deep learning algorithms for pedestrian and vehicle detection, providing early warning for existing dangers.
Application
Suitable for advanced automotive assisted driving and autonomous driving fields, such as:
Heavy duty engineering trucks: When using navigation, the infrared night vision system clearly imaging to enhance the driver's recognition in the dust and smoke condition, ensuring the safety of pedestrians and vehicles.
Model | CQ-TCVI6 | |
Observation Distance | Vehicle (2.3x2.3m) | Detection: 400m; Recognition: 120m |
Human (1.8x0.5m) | Detection: 300m; Recognition: 90m | |
* (Atmospheric conditions: 25℃, 1atm, visibility 10km, 60%RH | ||
Detector | Resolution | 640x512 |
Pixel Pitch | 17μm | |
NETD | ≤50mK | |
FOV | 32°x24.2°, ±5% | |
Focus Length | 19mm | |
Image Processing | Palettes | White hot, black hot iron red an others |
Image Adjustment | Automatic adjustment of brightness and contrast | |
Image Enhancement | Automatic | |
System Performance | Window heating | Yes |
Image Output | AHD format, 720P, frame rate 30Hz | |
Warning | Detection in driving | |
Power Supply | Power Input | DC24V, range from 9V ~ 32V |
Power Consumption | ≤6W (≤10W heating and defrosting) | |
External Interfaces | Power | Rated DC24V, range from 9V~32V) |
Video | AHD | |
Control Bus | RS485 | |
WIFI | Support Android / Apple Apps | |
Environmental | Working Temp. | -40℃~85℃ |
Protection Grade | IP69K | |
Physical Weight | ≤252g | |
Dimension | ≤72 x 51 x 64mm | |
Control Assemble | Protection Grade | IP40 |
Weight | ≤380g | |
Dimension | ≤152 x 101 x 28mm | |
