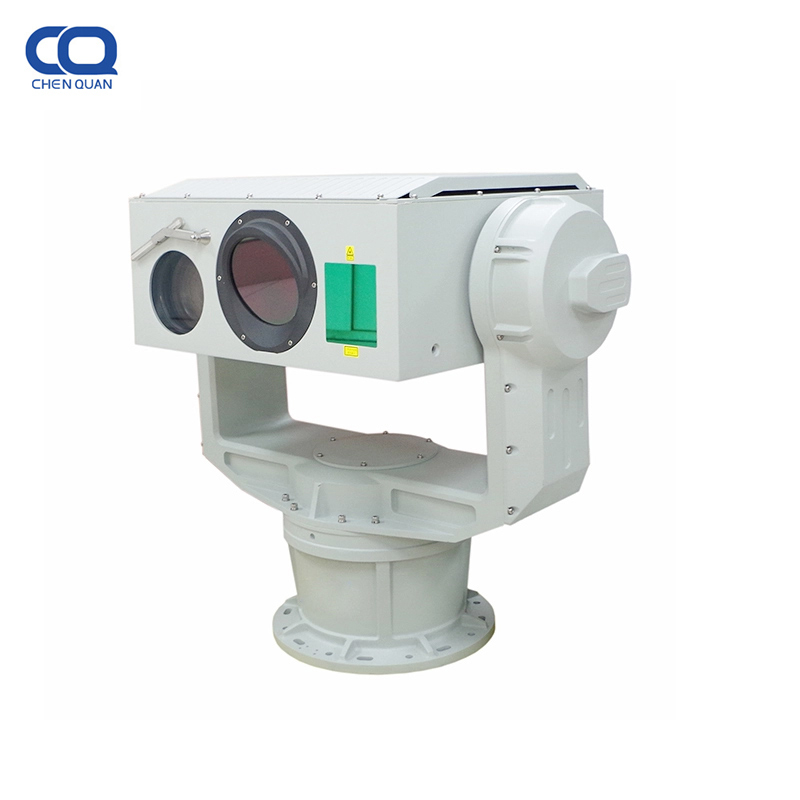

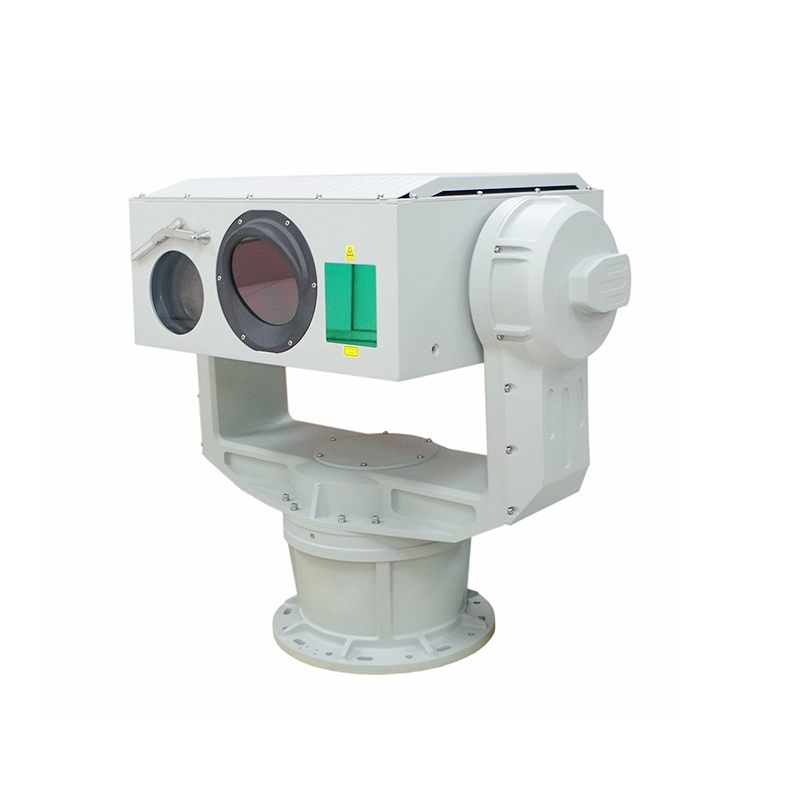

CQ-DMA-TRC610C23-2150-3LRF
Thermal Camera
Drone Tracking
People and Vehicle Detection
| More about Thermal imaging | |||
| 22-230mm LWIR | 30-300mm LWIR | ||
| 15-300mm MWIR | 22-450mm MWIR | 30-660mm MWIR | 40-800mm MWIR |
| 90-1100mm MWIR | |||
| More about Visible Imaging | |||
| 8-500mm 62X | 15-775mm 52X | 11-860mm 78X | 12-1000mm 83X |
| More about Laser imaging | ||||
| 500m | 1500m | 2000m | 3000m | 4000m |
| More LRF | ||||
| 300m | 1800m | 3000m | 5000m | 8000m |
| 10,000m | 15,000m | 20,000m | ||
| Model | BISEN (CQ-DMA-TRC610C23-2150-3LRF) | |
| Effective Distance (DRI) | Vehicle (2.3*2.3m) | Detection: 18km; Recognition: 4.8km; Identification: 2.5m |
| Human (1.8*0.6m) | Detection: 6.8km; Recognition: 3.8km; Identification: 1.8km | |
| Drone (0.3*0.3m) | Detection: 3.6km; Tracking: 2km | |
| IVS Range | 7km for Vehicle; 2.5km for Human | |
| Thermal Sensor | Sensor | 5th generation uncooled FPA sensor |
| Effective Pixels | 640x512, 50Hz | |
| Pixel Size | 12μm | |
| NETD | 40mK | |
| Spectral Range | 7.5~14μm, LWIR | |

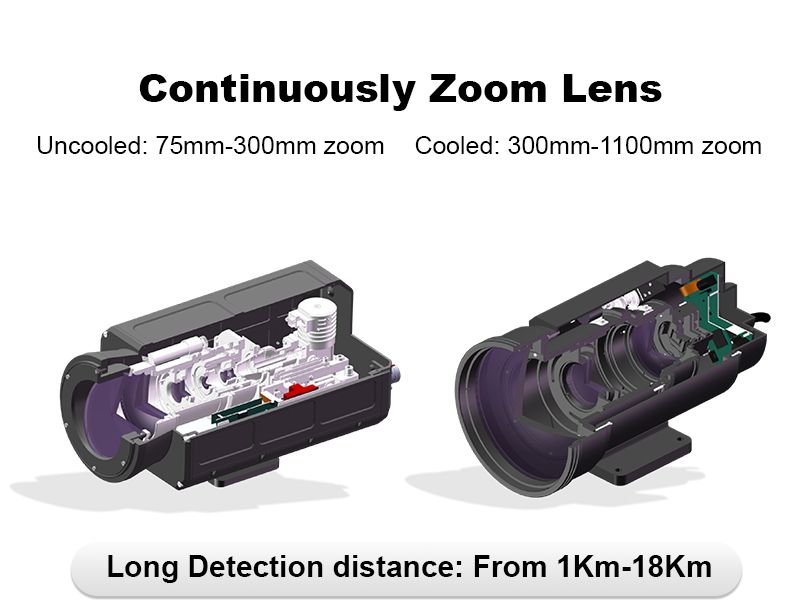

| Thermal Lens | Focal length | 22-230mm 10X |
| FOV | 20°×16°~2°×1.6° | |
| Angular radian | 0.55~0.05mrad | |
| Digital Zoom | 1~8X Continuous Zoom (Step 0.1) | |
| Visible Camera | Sensor | 1/1.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H)x1080(V) | |
| Frame Rate | 32Kbps~16Mbps,60Hz | |
| Min. Illumination | 0.05Lux (Color), 0.01Lux(B/W) | |
| Visible Lens | Lens Size | 8~500mm 62X |
| Image Stabilization | Support | |
| Defog | Support | |
| Focus Control | Manual/Auto | |
| Image | Image Stabilization | Support Electronic Image Stabilization |
| Enhance | Stable operational temperature without TEC, starting time less than 4 seconds | |
| SDE | Support SDE digital image processing | |
| Pseudo Color | 16 pseudo color and B/W, B/W inverse | |
| AGC | Support | |
| Ranging Ruler | Support | |
| PTZ | Accuracy | 0.02°, pulse precision motor, digital angle measurement sensor servo (0.002° Option) |
| Rotation | Pan: 0~360°, tilt: -90~+90° | |
| Speed | Pan: 0.01~80°/S, Tilt: 0.01~60°/S | |
| Preset | 255 | |
| Enhance | Fan/Wiper/Heater attached | |
| Split | Upper and lower split design, can be packaged and transported, combined quickly | |
| Zero Setting | support the setting of pan and pitch zero | |
| Position Time | less than 4s | |
| Angle Feedback | support real-time / query return and positioning functions of horizontal and pitch angles | |
| Interface | Ethernet | RS-485(PELCO D protocol, baud rate 2400bps),RS-232(option),RJ45 |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | |
| Video Output | PAL/NTSC | |
| Power | DC48V | |
| Compression | H.265 / H.264 / MJPEG | |
| Environmental | Operate Temp | -25ºC~+55ºC(-40ºC optional) |
| Storage Temp | -35ºC~+75ºC | |
| Humidity | <90% | |
| Ingress Protect | IP66 | |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |
| Wind resistance | spherical, anti-shake, anti-33m/s strong wind | |
| Anti-fog/salty | PH 6.5~7.2 (No less than 700 hours) | |
| Power | 250W (Peak)/ 50W (Stable) | |
