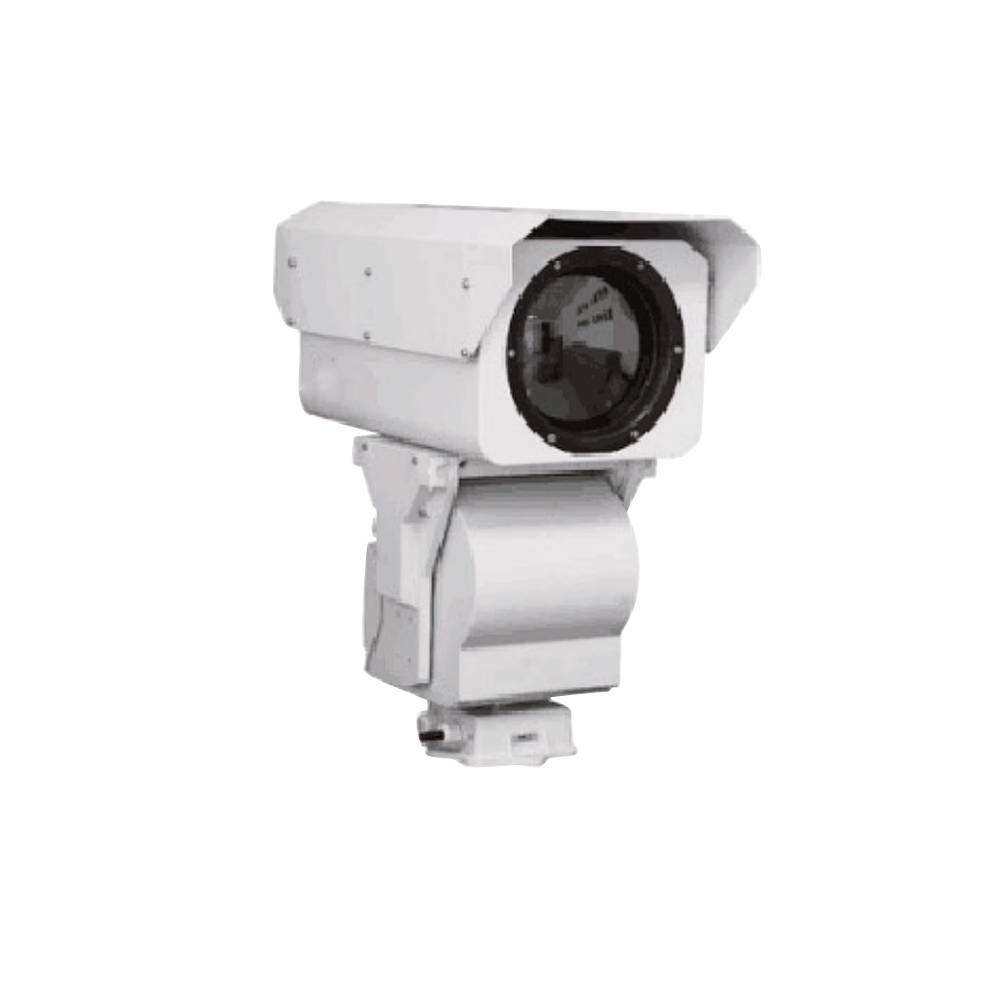

CQ-TC41C021(PT)-S
Model | CQ-TC41C021(PT)- S | CQ-TC43C28(PT)- S |
Detection* | Vehicle: 17400m | Vehicle: 18000m |
Recognition | Vehicle: 4800m | Vehicle: 6000m |
Sensor | 1、 Detector: 5th generation UFPA Vox Detector; 2、 Resolution : 336x256 , (640X512 optional) 3、 NETD : 50mK ( @25°C F1.0 ) 4、 Spectral range : 7.5 ~ 14um | |
NETD | 50mK ( @25°C F1.0 ) | |
Focal length | 1、 Length: 21 ~ 210mm 2、 FOV : 16° x 12° ~ 1.6° x 1.2° 3、 Motorized zoom、focus (auto focus optional) 4、 AS+DOE advanced optical design, high infrared transmission 5、 Applied 3CAM high precision design | 1、 Length: 95/285mm 2、 FOV : 3.4° x 2.4°/1.1° x 0.8° 3、 Motorized zoom, auto focus 4、 AS+DOE advanced optical design, high infrared transmission 5、 Applied 3CAM high precision design; Dual focal fast switch |
IFOV | 0.08 ~ 0.85mrad | 0.06~0.18mrad |
Image processing | 1. stable operational temperature, starting time less than 4 seconds 2. SDE digital image processing 3.10 pseudo color and B/W, B/W inverse 4. AGC 5. 2X digital amplification | |
Housing | 1. Material : aluminum alloy housing , waterproof 2. Structure : Integral single window design 3. Surface : PTA coating,anti sea water corrosion 4. Sealing rate : IP66 5. Built-in temperature controller, thermal balance design 6. Interface : aviation waterproof connector | |
PTZ (optional) | 1. Load : 50kg military level digital PT 2. Angle : pan0~360°, tilt -45°- +45° 3. Speed : 0.01 ~ 30°/S high precision variable speed control and locking 4. Preset: 80 presets , support lens zoom and focus memory , variable speed scanning 0~ 30°/S , support apple peel scanning function 5. Protocol : Pelco-P、Pelco-D 6. Baud rate : 2400、4800、9600、19200 optional | |
Consumption,weight | 1. Consumption ( PT included ) : min.40W , max.120W 2. Weight ( PT included ) : ≤40kg | |
Interface | 1. RS-485 ( PELCO D protocol, baud rate 2400bps )、RS-232 ( option ) 2. Remote OSD setting 3. PAL/NTSC video output 4. AC24V( DC12V option) 5. Waterproof connector | |
Environment indicator | 1. Working temperature : -25°C~ +55°C (-40°C optional) 2. Storage temperature : -35°C ~ +75°C 3. Humidity : <90% 4. Anti-shock : 0.2g ( GB/T15211—20135.4 harshest level 2 standard ) 5. Anti-resistance : 15g ( GB/T15211—20135.3 harshest level 3 standard ) 6. Anti-lightening : power 4000V , signal 2000V 7. Anti salty : PH6.5~7.2 , continuous sprarying 48 hours 8. Protection rate : IP66 |
Application:
Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.
Model | CQ-TC41C021(PT)- S | CQ-TC43C28(PT)- S |
Detection* | Vehicle: 17400m | Vehicle: 18000m |
Recognition | Vehicle: 4800m | Vehicle: 6000m |
Sensor | 1、 Detector: 5th generation UFPA Vox Detector; 2、 Resolution : 336x256 , (640X512 optional) 3、 NETD : 50mK ( @25°C F1.0 ) 4、 Spectral range : 7.5 ~ 14um | |
NETD | 50mK ( @25°C F1.0 ) | |
Focal length | 1、 Length: 21 ~ 210mm 2、 FOV : 16° x 12° ~ 1.6° x 1.2° 3、 Motorized zoom、focus (auto focus optional) 4、 AS+DOE advanced optical design, high infrared transmission 5、 Applied 3CAM high precision design | 1、 Length: 95/285mm 2、 FOV : 3.4° x 2.4°/1.1° x 0.8° 3、 Motorized zoom, auto focus 4、 AS+DOE advanced optical design, high infrared transmission 5、 Applied 3CAM high precision design; Dual focal fast switch |
IFOV | 0.08 ~ 0.85mrad | 0.06~0.18mrad |
Image processing | 1. stable operational temperature, starting time less than 4 seconds 2. SDE digital image processing 3.10 pseudo color and B/W, B/W inverse 4. AGC 5. 2X digital amplification | |
Housing | 1. Material : aluminum alloy housing , waterproof 2. Structure : Integral single window design 3. Surface : PTA coating,anti sea water corrosion 4. Sealing rate : IP66 5. Built-in temperature controller, thermal balance design 6. Interface : aviation waterproof connector | |
PTZ (optional) | 1. Load : 50kg military level digital PT 2. Angle : pan0~360°, tilt -45°- +45° 3. Speed : 0.01 ~ 30°/S high precision variable speed control and locking 4. Preset: 80 presets , support lens zoom and focus memory , variable speed scanning 0~ 30°/S , support apple peel scanning function 5. Protocol : Pelco-P、Pelco-D 6. Baud rate : 2400、4800、9600、19200 optional | |
Consumption,weight | 1. Consumption ( PT included ) : min.40W , max.120W 2. Weight ( PT included ) : ≤40kg | |
Interface | 1. RS-485 ( PELCO D protocol, baud rate 2400bps )、RS-232 ( option ) 2. Remote OSD setting 3. PAL/NTSC video output 4. AC24V( DC12V option) 5. Waterproof connector | |
Environment indicator | 1. Working temperature : -25°C~ +55°C (-40°C optional) 2. Storage temperature : -35°C ~ +75°C 3. Humidity : <90% 4. Anti-shock : 0.2g ( GB/T15211—20135.4 harshest level 2 standard ) 5. Anti-resistance : 15g ( GB/T15211—20135.3 harshest level 3 standard ) 6. Anti-lightening : power 4000V , signal 2000V 7. Anti salty : PH6.5~7.2 , continuous sprarying 48 hours 8. Protection rate : IP66 |
Application:
Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.
