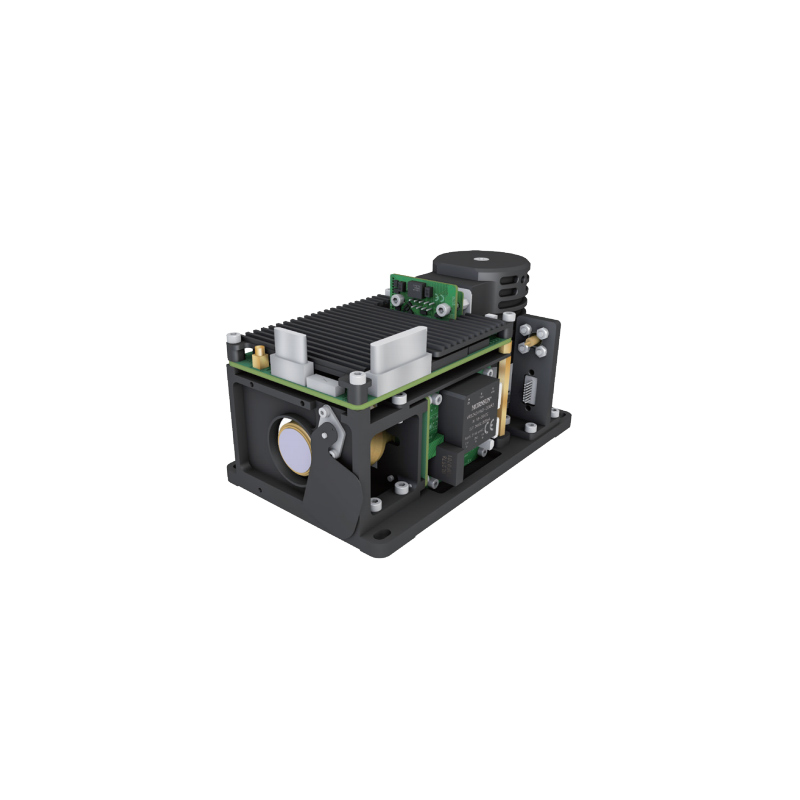

HD 1280X1024 12um MID-Wave Mwir Cooled Thermal Camera Sensor Module

Availability:
Quantity:
Inquire Add to Basket

  • CQ-MTS120C12

Modular design, small size and high integration; It has intelligent image processing algorithms such as multi-background non-uniformity automatic correction technology, image noise filtering, digital detail enhancement, automatic dimming, etc., and has the characteristics of high sensitivity, easy integration, rich interfaces, high reliability and strong scalability.

Model CQ-MTS120C12
Sensor HgCdTe
Cooling Stirling, The refrigeration time < 8min (normal)
Spectral Range 3.7μm~4.8μm, MWIR
Resolution 1280x1024, 12μm
F F2.0 / 4.0
Size 151mm×90mm×90mm
Weight ≤2Kg
