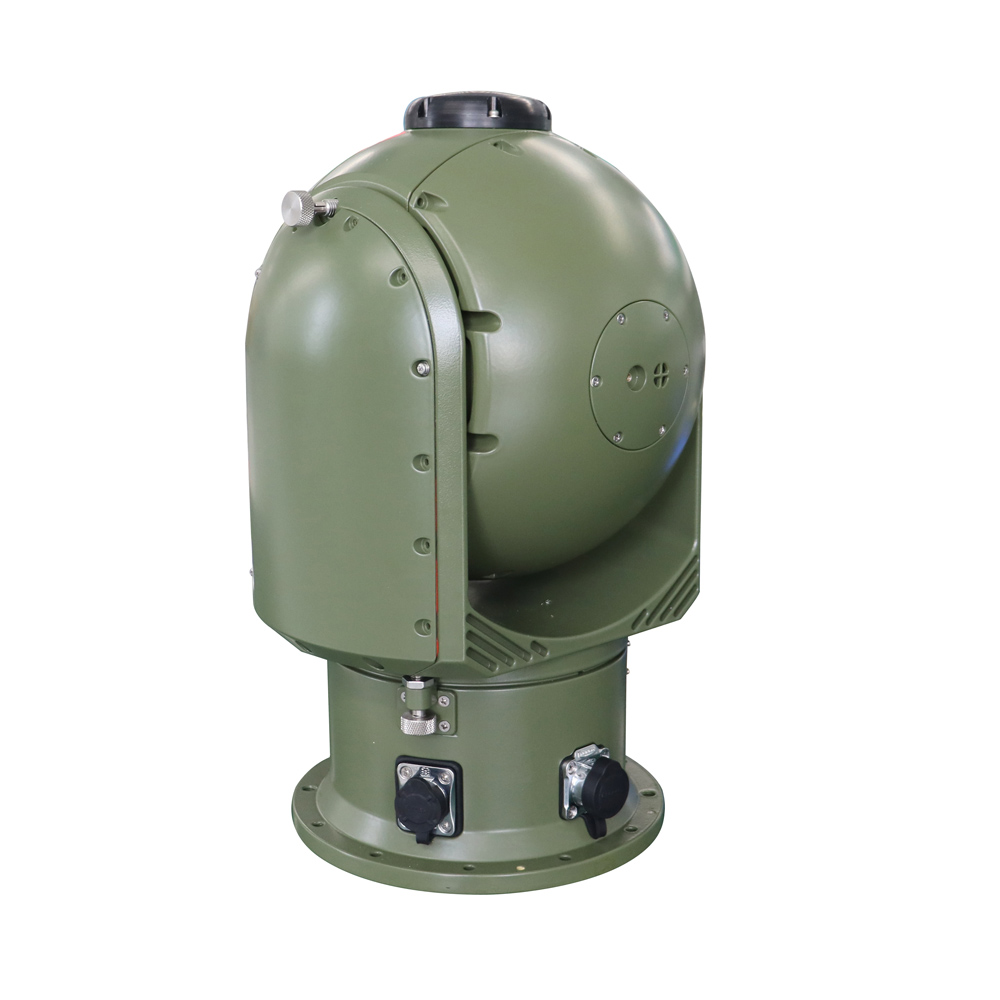

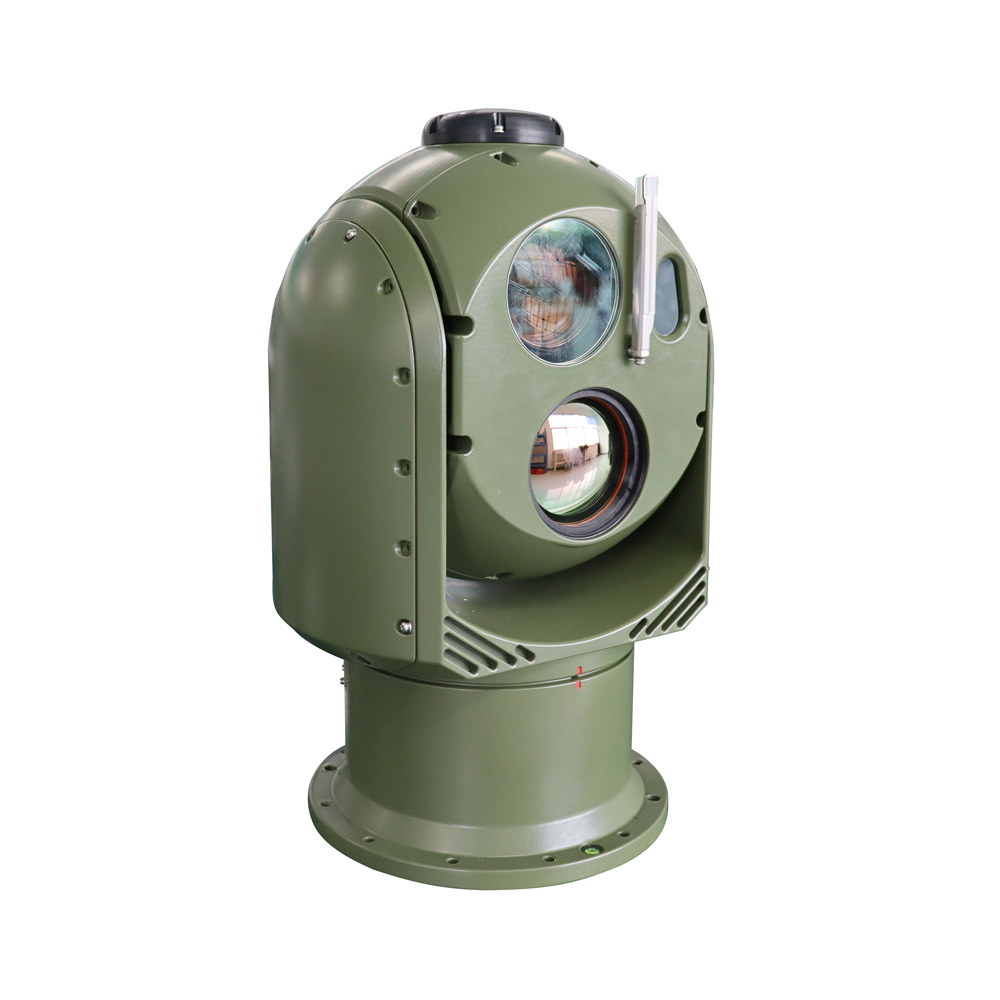

CQ-ZS091-TVC63C06-4120-3LRF
It is a long-distance photoelectric detection system specially designed for vehicle use. It has good wind resistance and high performance indicators. Multi-spectrum detection modules such as high-definition visible light cameras, thermal imaging cameras can be integrated, so as to realize all-weather, all-time, and all-dimensional discovery, positioning, tracking, identification of the target.
The EO/IR platform adopts high-grade quality design, the overall shell is made of super-strong cast aluminum material, which effectively ensures the long-term stable operation of the equipment in the harsh environment of the field.
| Model | CQ-ZS091-TVC63C06-4120-3LRF | |
| Effective Distance (DRI) | Vehicle (2.3*2.3m) | Day Recognition: 3000m |
| Night Recognition: 1200m | ||
| Human (1.8*0.6m) | Day Recognition: 2000m | |
| Night Recognition: 750m | ||
| Thermal Camera | Sensor | Vox Detector |
| Effective Pixels | 640x512 | |
| Pixel Size | 12μm | |
| NETD | ≤30mK | |
| Spectral Range | 8 ~ 14μm, LWIR | |
| Pseudo Color | 16 pseudo color and B/W, B/W inverse | |
| AGC | Support | |
| Digital Zoom | 8X | |
| Thermal Lens | Focal length | 20 ~ 60mm, 3X |
| FOV | 21.7° × 17.5° ~ 7.3° × 5.9° | |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS |
| Resolution | 4MP | |
| Frame Rate | 32Kbps ~ 16Mbps, 50Hz | |
| Min. Illumination | 0.05Lux (Color), 0.01Lux(B/W) | |
| Defog | Support SDE digital image processing | |
| BLC/WDR/HLC/AGC | Yes | |
| Digital Zoom | 16X | |
| Visible Lens | Lens Size | 6 ~ 120mm, 20X |
| Image Stabilization | Support | |
| Focus Control | Manual/Auto | |
| Laser Rangefinder | Measuring Range | 50m ~ 3km |
| PTZ | Rotation | Pan: 0 ~ 360°, tilt: -90 ~ +90° |
| Rotate Speed | 0.01° ~ 100°/s | |
| Position Time | ≤2s | |
| Preset | 255 | |
| Gyro (Optional) | two-axis gyro stable, ≤±0.5mrad (1σ, 1°/2Hz) | |
| Accuracy | ±0.01° | |
| Interface | Ethernet | RJ45 |
| Protocol | RTSP, ONVIF, 28181 | |
| Environmental | Operate Temp. | -40ºC ~ +60ºC |
| Storage Temp. | -45ºC ~ +75ºC | |
| Power | 80W (Peak 200W) @DC24V | |
| Ingress Protect | IP66 | |
| Anti-fog/Salty | PH6.5 ~ 7.2 | |
| Weight | 10kg | |
| Dimension | Ф220mm×360mm | |
