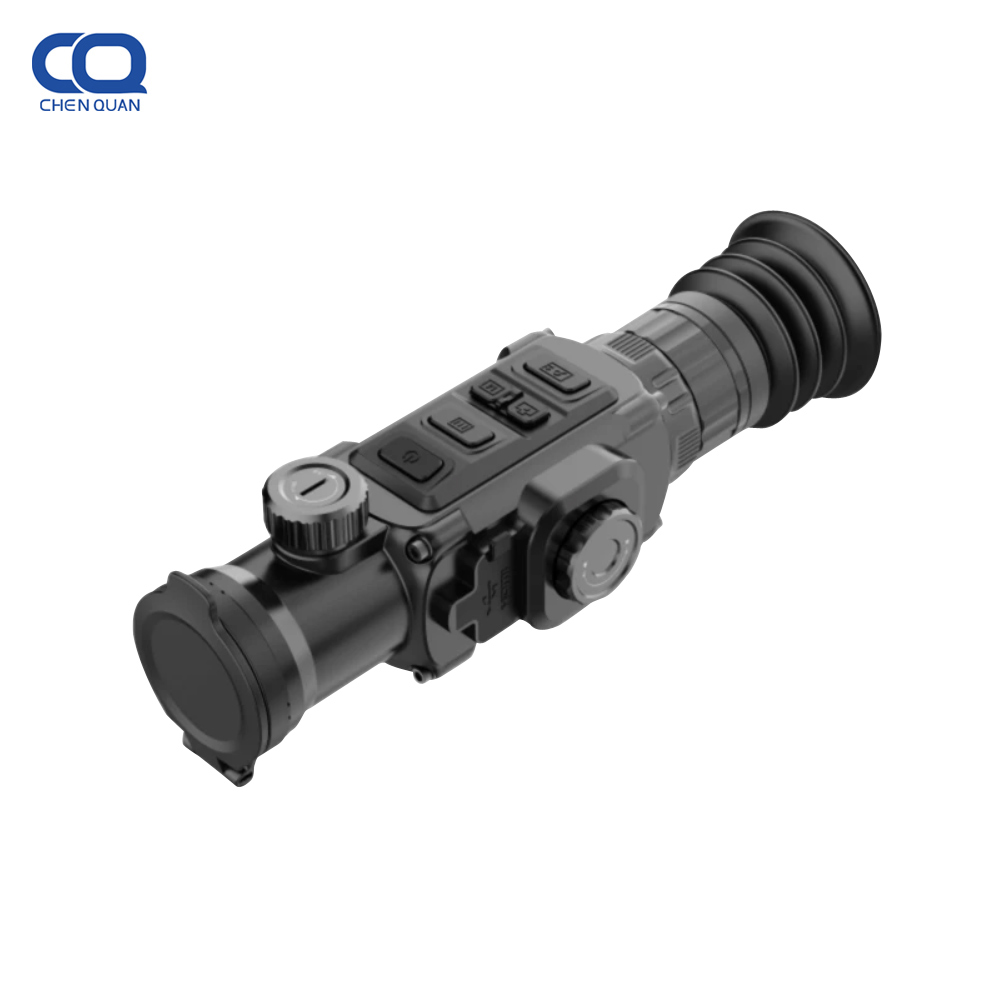

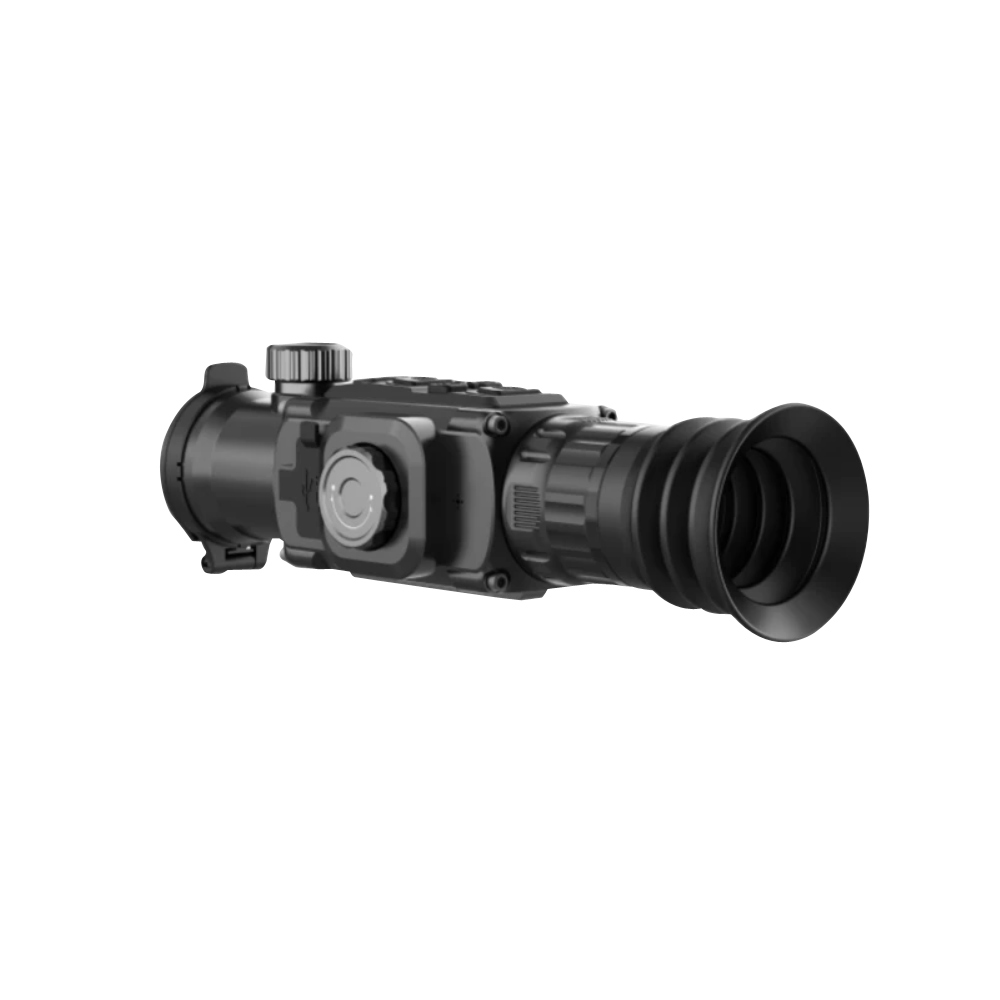

CQ-YTS61C3-N
Model | CQ-YTS61C3-N | |
Infrared Module | Image Sensor | UFPA (VOx) |
Resolution | 640×512 | |
Pixel Pitch | 12um | |
Frame Rate | 50Hz | |
NETD | ≤35mk | |
Optical Parameter | Focal Length | 35mm |
Aperture | F1.0 | |
Field of View | 12.5°×10.0° | |
Focus Mode | Manual operation | |
Detection Range (vehicle) | 2.2km | |
Image Display | Screen Type & Size | 0.39 inch OLED |
Resolution | 1024×768 | |
Eye Relief | 55mm | |
Exit pupil | 6mm | |
Brightness Adjustment | Support | |
Palettes | White Hot / Black Hot / Red Hot / Fusion | |
Digital Zoom | 1×; 2×; 4× | |
Power Supply | Battery Type | 4x 16340 Rechargeble li-ion |
External Power Supply | 5V/ DC 2A USB Type-C | |
Power Dissipation | ≤2.2W | |
Battery Operating Time | ≥10h (25℃) | |
Peripheral | Electronic Compass | Support |
Attitude Sensor | Support | |
GPS | Support (optional) | |
WIFI | 2.4G | |
Storage | Built-in EMMC (32GB) | |
General | Interface | USB Type-C |

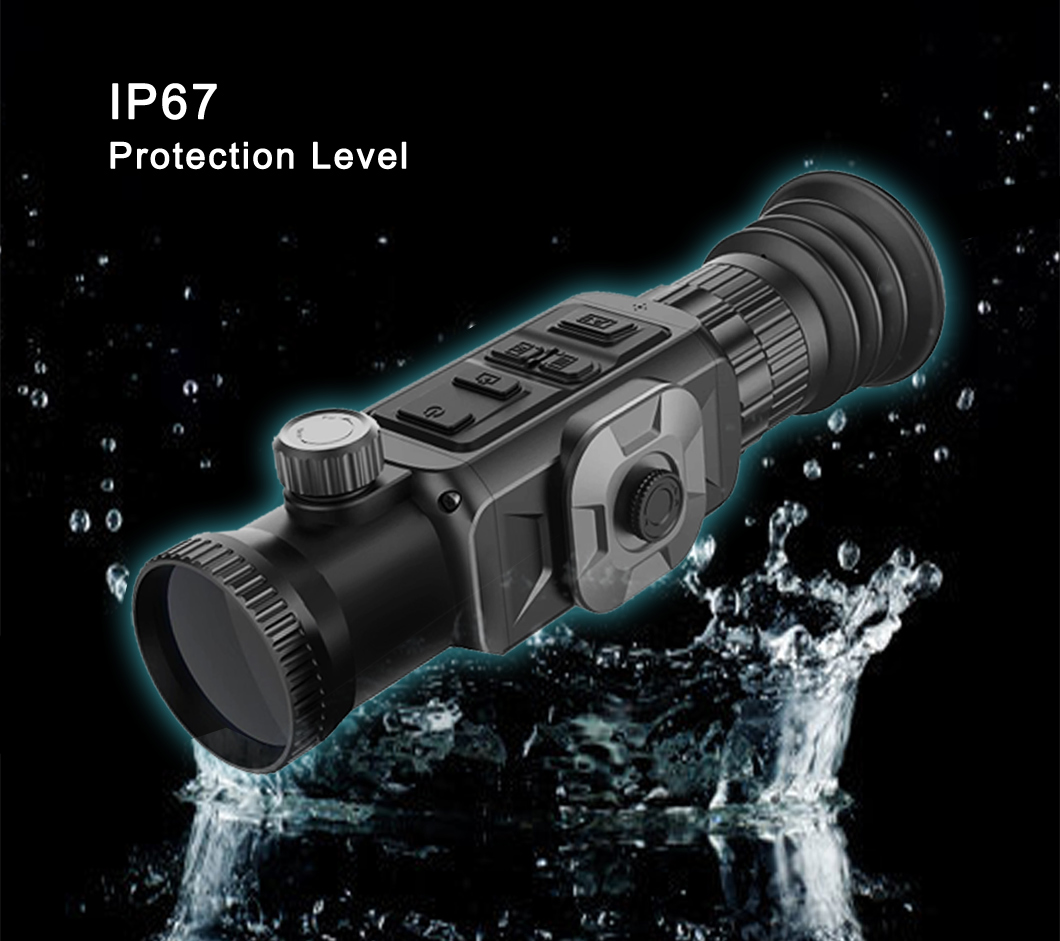

Protection Level | IP67 | |
Shock Resistance | 800g/0.4ms | |
Working Temp. | -30°C to +60°C | |
Dimension | 210 x 65 x 65mm (with lens cover) | |

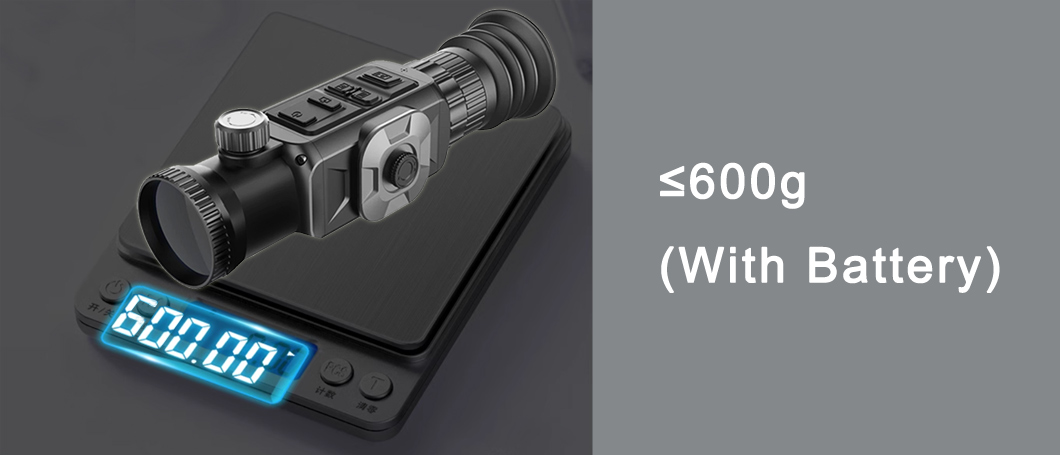

Weight | ≤600g (With Battery) | |
