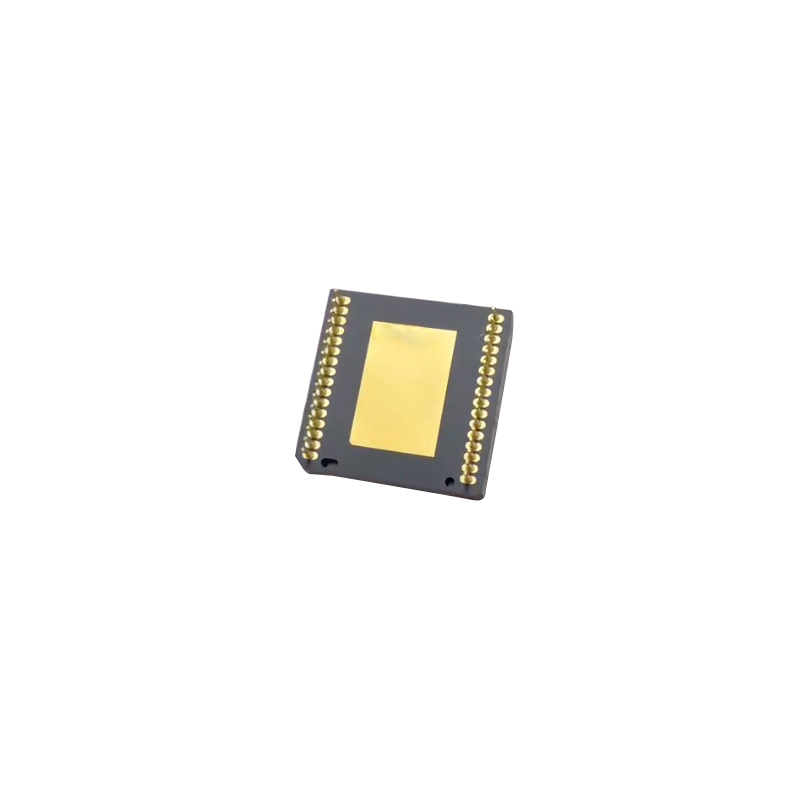

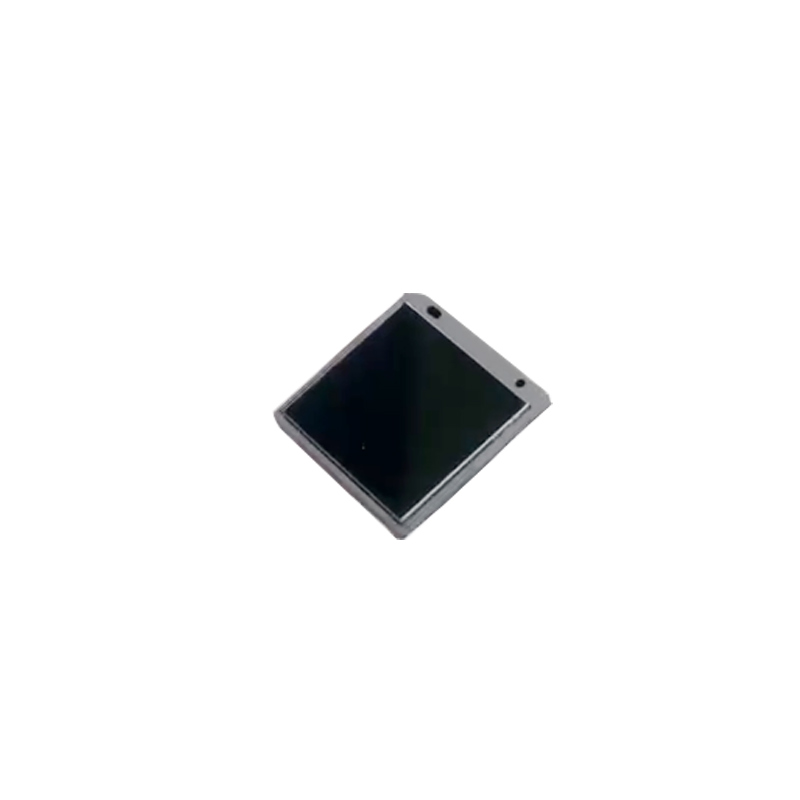

High resolution 12um long-wave infrared radiation imaging thermal detector

Pixel Size: 12μm
Pixels: 640x512
Frame Frequency: ≤60Hz
Response Band: LWIR (8～14μm)
NETD≤20mK（F#/1.0, 50Hz, 300K）
Output Dynamic Range: ≥64dB
Power Supply: analog power supply 3.3V, digital power supply 1.8V
Read-out Mode: Read-out line by line
Output Mode: 4-port digital output (14-bitADC)
32-Pin vacuum package (PGA32P)
Uncooled mode without TEC
Adjustable integration time
Adjustable gain
