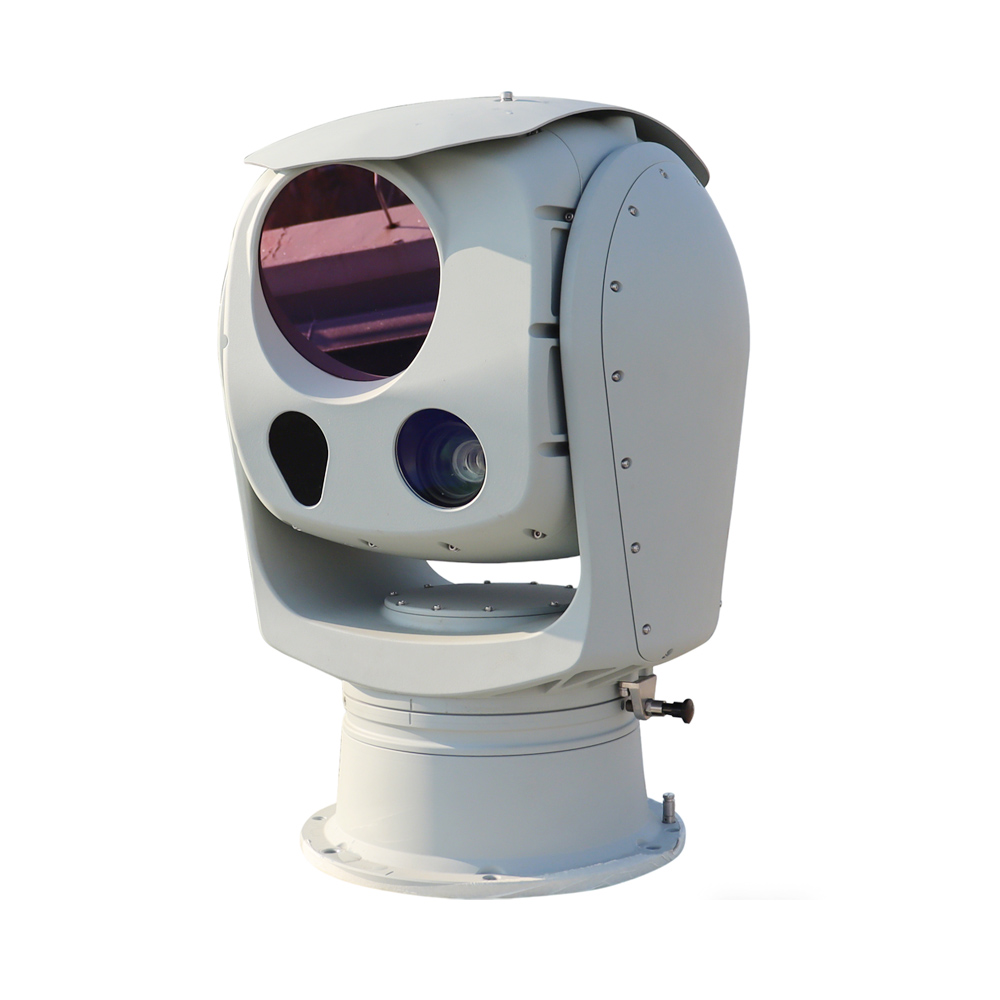

CQ-PS50-CTVC640C60-4050-10LRF
The system employs advanced infrared circumferential scanning technology, enabling continuous 360° omnidirectional search and monitoring with no blind spots through a rotating platform, offering radar-like wide-area detection capabilities. Leveraging self-developed infrared panoramic stitching and intelligent detection algorithms, it generates large FOV infrared panoramic images in real time, automatically identifies targets in the air, at sea, and on the ground, and provides continuous surveillance and early warning for drones, aircraft, ships, vehicles, and other targets.
In the gazing observation mode, the system can rapidly switch to precise target tracking mode. The high-performance visible light module employs long-focus high-definition imaging technology, enabling the capture of detailed target information at long distances for target identification and feature recognition; the cooled thermal imaging module features high sensitivity and long-range detection capability; the laser ranging module provides high-precision distance data, facilitating three-dimensional coordinate measurement and trajectory calculation of targets, thereby offering accurate data.

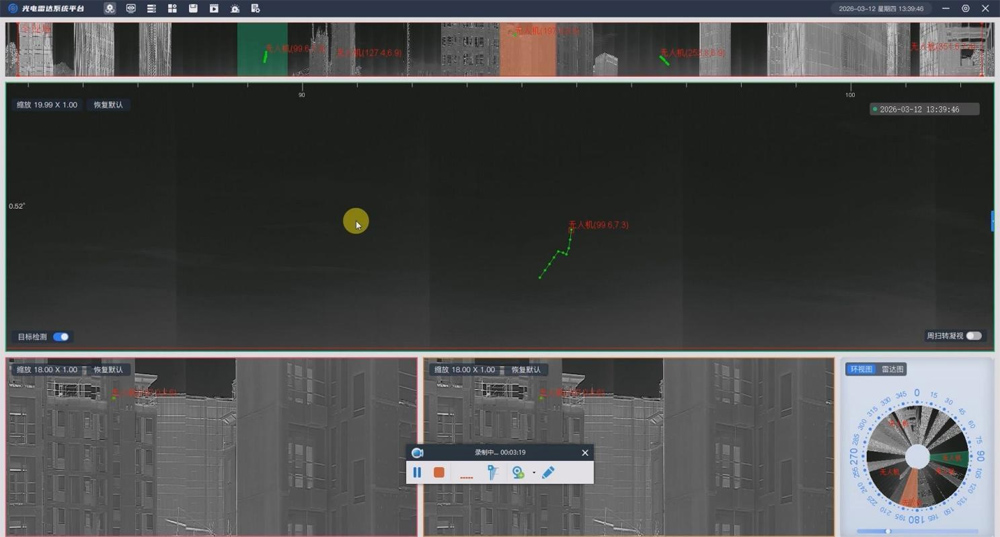

Ground target trajectory
Air target trajectory
Scan Mode (Thermal Camera)

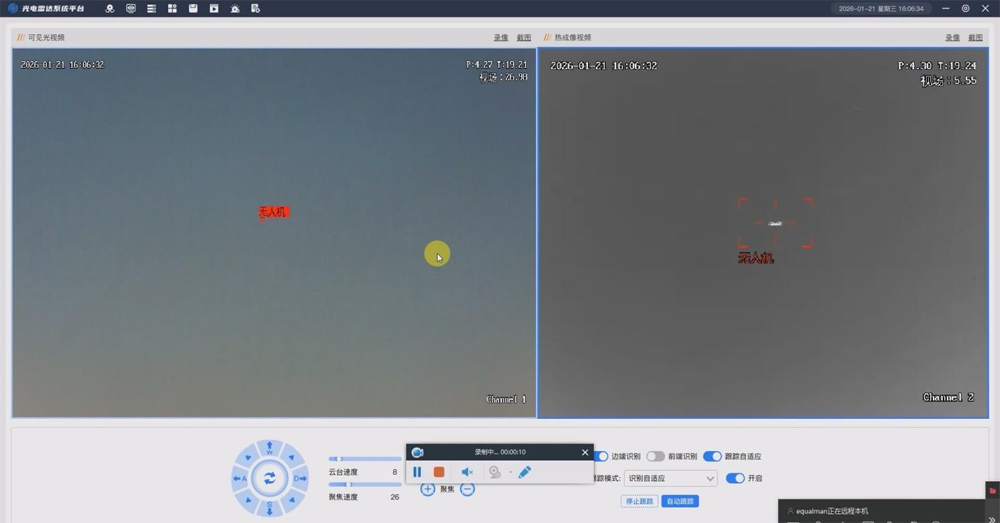

Observation / Tracking Mode (Visible & Thermal)
| Model | CQ-PS50-CTVC640C60-4050-10LRF | |
| Effective Range | Drone (0.3x0.3m) | ≥2km |
| Human (1.7x0.5m) | ≥3km | |
| Vehicle (4.6x2.3m) | ≥6km | |
| (Environment: visibility ≥15km; Humidity ≤60%RH; Temperature 15 ~ 25ºC) | ||
| Thermal Camera (Scan) | Detector | Cooled Focal Plane Array (FPA) MCT detector |
| Spectral Range | 3.7μm ~ 4.8μm | |
| Effective Pixels | 640 × 512 | |
| Focal Length | 15X F4.0 | |
| Vertical FOV | 4.4°(1s/r) / 2.9°(1s/r) / 2.2°(2s/r) / 1.5°(2.5s/r) | |
| Horizontal FOV | 360° | |
| Working Mode | Scan / Observation | |
| Visible Camera(Observation) | Resolution | 2688 × 1520 |
| Zoom Lens | 20X | |
| Fog Penetration | Electronic & optical defog supported | |
| Working Mode | Observation | |
| Laser Rangefinder | Wavelength | 1.5Xμm, Eyes-safe |
| Measuring Range | 100m ~ 10000m | |
| PTZ | Rotation | Pan: 360° , Tilt -30° ~ +60° |
| Tilt Speed | 0.01°/s ~ 60°/s | |
| Angular Position Accuracy | ≤0.01° | |
| Tracking Precision | ≤0.5mrad | |
| Interface | Communication Port | RJ45 |
| Power | DC24V±20% | |
| Environmental | Operating Temp. | -40ºC ~ 60ºC |
| Storage Temp. | -50ºC ~ 70ºC | |
