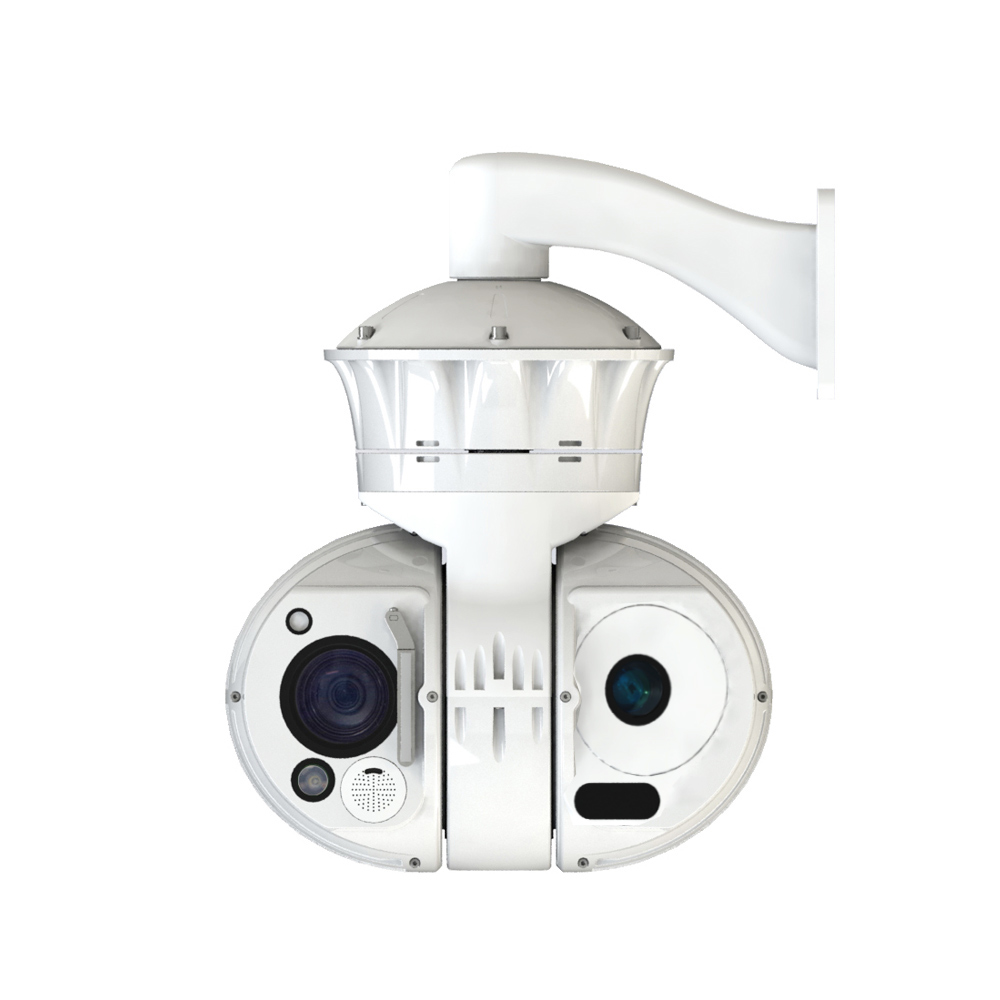

CQ-DMS10-21C24
| Model | CQ-DMS10-21C24 | |
| Optical Distance | Day | 1.5Km |

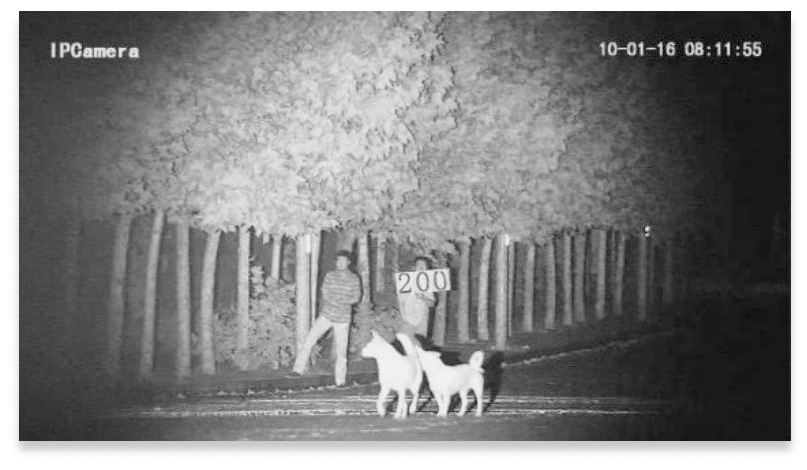

| Night | 500m | |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 2MP or 4MP | |
| Frame Rate | 32Kbps~16Mbps, 60Hz | |
| Min. Illumination | 0.05Lux(Color), 0.01Lux(B/W) | |
| SD Card | Support | |
| Visible Lens | Focal Lens | 6.5-240mm 36X |
| Image Stabilization | Support | |
| Focus Control | Manual/Auto | |
| Defog | Support | |
| Laser | Effective Length | 500m |
| Angle | 2°～50° | |

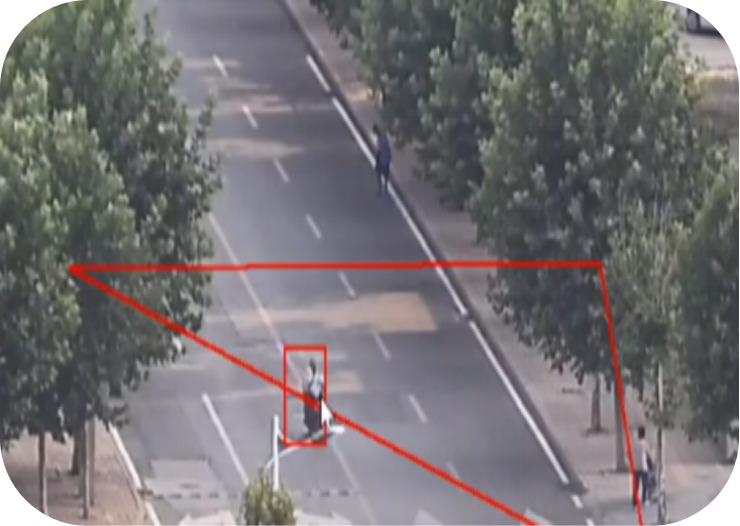

| AI Function | Intrusion detection, target tracking, people vehicle target detection | |
| PTZ | Patrol | Support 16 cruise routes, each can support 256 preset positions |
| Rotation | Pan: 0～360°, tilt: -90～+90° | |
| Speed | Pan: 0.01~100°/S, Tilt: 0.01~80°/S | |
| Preset | 3000 | |
| Environmental | Operate Temp | -25℃～+55℃ (-40℃ optional) |
| Storage Temp | -35℃～+75℃ | |
| Humidity | <90% | |
| Ingress Protect | IP67 | |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |
| Power | 60W | |
| Model | CQ-DMS10-21C24 | |
| Optical Distance | Day | 1.5Km |
| Night | 500m | |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 2MP or 4MP | |
| Frame Rate | 32Kbps~16Mbps, 60Hz | |
| Min. Illumination | 0.05Lux(Color), 0.01Lux(B/W) | |
| SD Card | Support | |
| Visible Lens | Focal Lens | 6.5-240mm 36X |
| Image Stabilization | Support | |
| Focus Control | Manual/Auto | |
| Defog | Support | |
| Laser | Effective Length | 500m |
| Angle | 2°～50° | |
| AI Function | Intrusion detection, target tracking, people vehicle target detection | |
| PTZ | Patrol | Support 16 cruise routes, each can support 256 preset positions |
| Rotation | Pan: 0～360°, tilt: -90～+90° | |
| Speed | Pan: 0.01~100°/S, Tilt: 0.01~80°/S | |
| Preset | 3000 | |
| Environmental | Operate Temp | -25℃～+55℃ (-40℃ optional) |
| Storage Temp | -35℃～+75℃ | |
| Humidity | <90% | |
| Ingress Protect | IP67 | |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |
| Power | 60W | |
