CQ-MTC66C400L

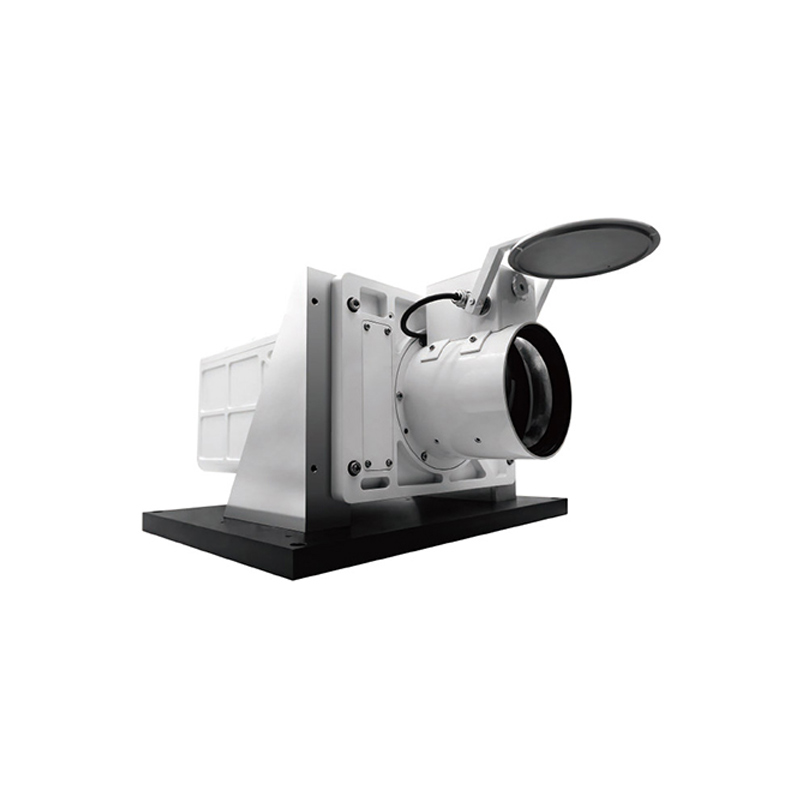

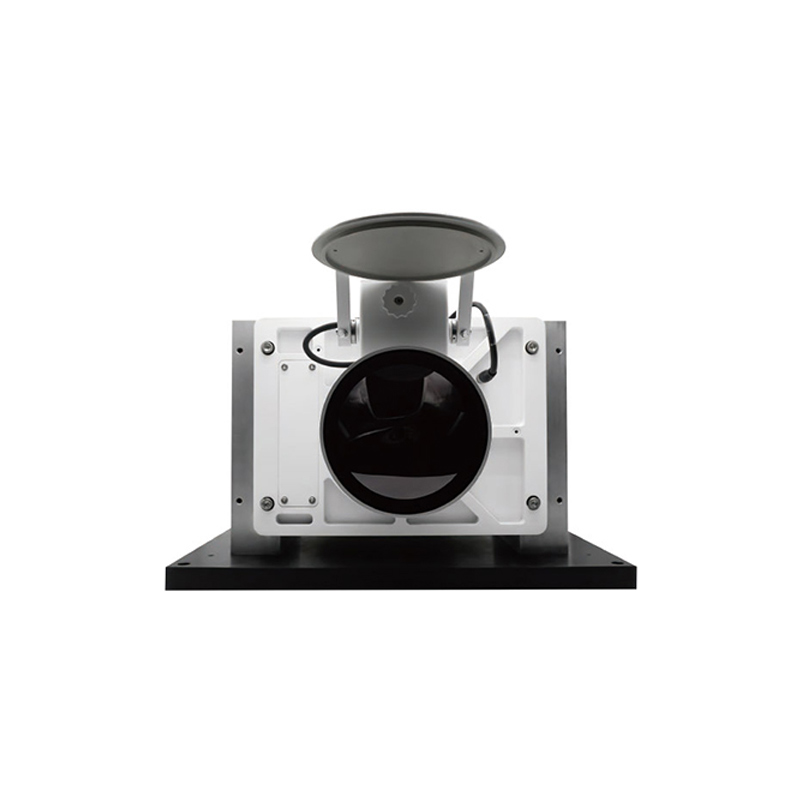

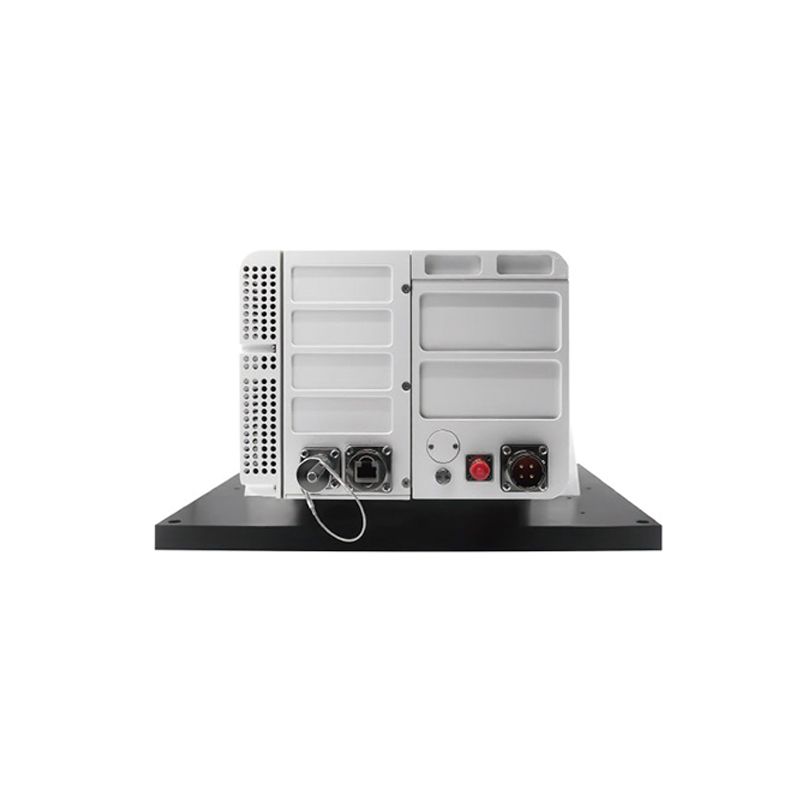

The medium wave continuous zoom cooled thermal imager features a focal length range of 60~400mm, a continuous zooming time ≤5s, and optical axis consistency ≤2 pixels.
It boasts automatic focusing function, with automatic focusing time ≤2s, and can achieve wide-angle search and accurate capture.
Adaptive multi-background non-uniformity automatic correction technology, and image noise filtering, enhancement, automatic dimming as well as other intelligent image processing algorithms are adopted to ensure good imaging quality.
The product features a full range of functions and multiple interfaces, with high reliability and strong expandability, and can work around the clock. It can be applied in photoelectric turrets and other platforms.
Features:
· 60~400mm continuous zoom, automatic focusing;
· Optical axis consistency ≤ 2 pixels;
· Adaptive non-uniformity correction technology;
· Image noise filtering, image intensification, automatic dimming and other intelligent image processing algorithms;
· Multiple video output: PAL/CameraLink/fiber optics.
Model | CQ-MTC66C400L |
Resolution | 640x512 |
Wavelength range | 3.7μm-4.8μm |
Pixel size | 15μm |
Focal length | 60-400mm |
Cooling mode | Stirling |
NETD | ≤23mK@F4.0,25ºC |
Operating temperature | -40ºC~+60ºC |
Input voltage | DC24V |
Power consumption | Peak power consumption ≤30W Stable ≤15.6W |
Video output | PAL / CameraLink / Fiber optics |
Communication interface | RS422 |
The medium wave continuous zoom cooled thermal imager features a focal length range of 60~400mm, a continuous zooming time ≤5s, and optical axis consistency ≤2 pixels.
It boasts automatic focusing function, with automatic focusing time ≤2s, and can achieve wide-angle search and accurate capture.
Adaptive multi-background non-uniformity automatic correction technology, and image noise filtering, enhancement, automatic dimming as well as other intelligent image processing algorithms are adopted to ensure good imaging quality.
The product features a full range of functions and multiple interfaces, with high reliability and strong expandability, and can work around the clock. It can be applied in photoelectric turrets and other platforms.
Features:
· 60~400mm continuous zoom, automatic focusing;
· Optical axis consistency ≤ 2 pixels;
· Adaptive non-uniformity correction technology;
· Image noise filtering, image intensification, automatic dimming and other intelligent image processing algorithms;
· Multiple video output: PAL/CameraLink/fiber optics.
Model | CQ-MTC66C400L |
Resolution | 640x512 |
Wavelength range | 3.7μm-4.8μm |
Pixel size | 15μm |
Focal length | 60-400mm |
Cooling mode | Stirling |
NETD | ≤23mK@F4.0,25ºC |
Operating temperature | -40ºC~+60ºC |
Input voltage | DC24V |
Power consumption | Peak power consumption ≤30W Stable ≤15.6W |
Video output | PAL / CameraLink / Fiber optics |
Communication interface | RS422 |
