CQ-UT500

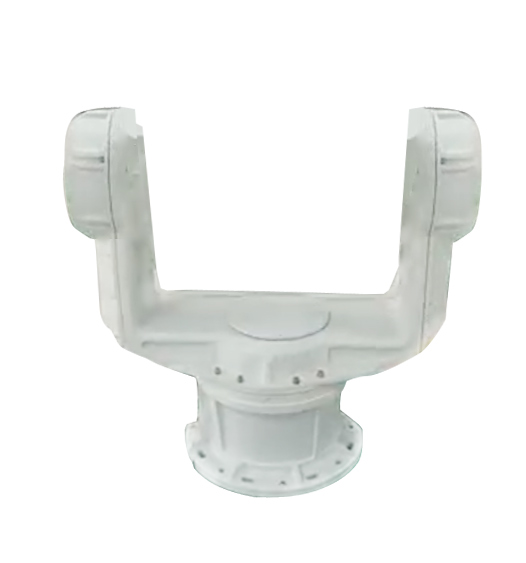

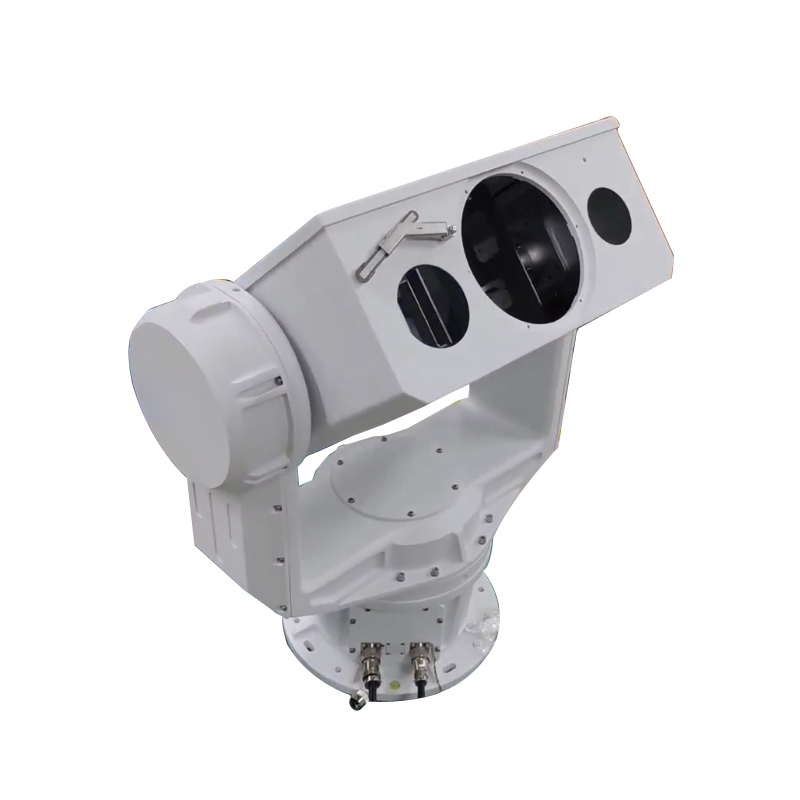

40Kg camera rotation PT platform
Resistant to harsh environments: high-strength aluminum alloy, sprayed conformal coating, anti-seawater corrosion, U-shaped shell, easy to maintain, easy to install;
0.005°, Pulse precision motor, digital angle measurement sensor servo;
High load capacity: It can carry visible light, large-aperture thermal imager, high-power laser illuminator and long-distance ranging;

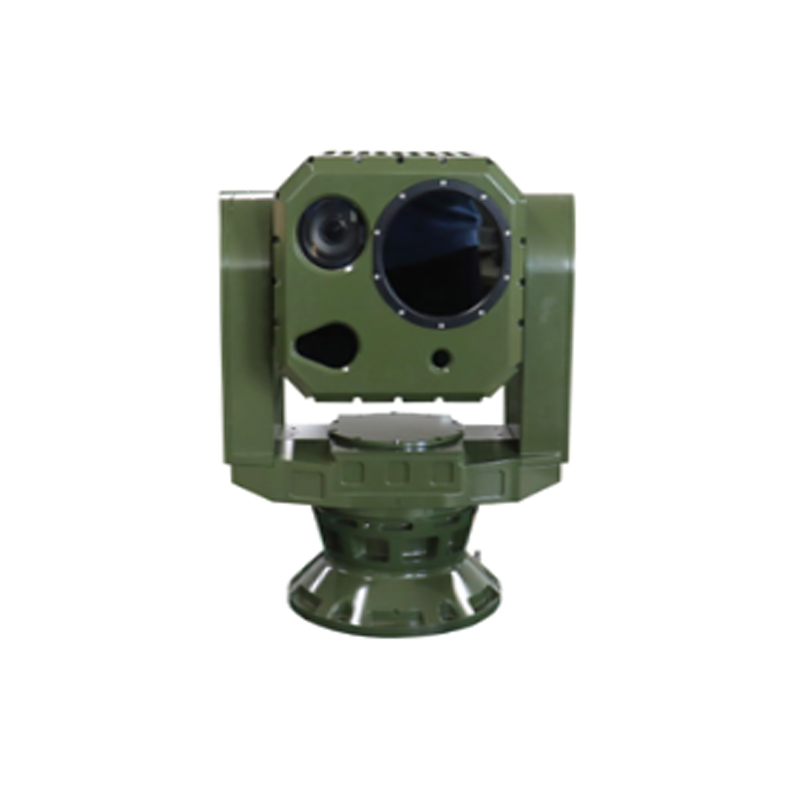

Equipped with multi-band imaging, integrated long-wave/mid-wave infrared thermal image, near-infrared laser, visible light, turntable shield, and decoder in one, suitable for all-weather observation;
Data feedback: real-time feedback of azimuth, pitch angle, focal length, focus value, target accuracy positioning and tracking (with application software);
Adopts super strong aluminum alloy shell, IP66 protection, rainproof, dustproof, and can adapt to various harsh environments;
Optional network-specific slip rings are available for 100 or 1 Gigabit network transmission;
Serial server can be built-in to realize network control;
Support for customized protocols;
Electric servo tracking turntable, with manual, automatic, radar linkage three ways of target tracking function;
| Model number | CQ-UT500 | |
| Rotation speed | Horizontal 0.01° to 120°/S; Pitch 0.01°~90°/S | |
| Angle of rotation | Horizontal 0~360°continuous rotation; Pitch +90° to -90° | |
| Preset position | 200 (expandable) | |
| Repeat positioning accuracy | 0.005° | |
| Position return | support | |
| Cruise control | 8 lines with 10 cruise points each | |
| Automatic homing | Auto-return time can be set from 1 to 60 minutes | |
| Auto scanning | 1 | |
| Anti-salt spray (optional) | In the PH value between 6.5-7.2, after 48 hours of continuous spraying, the machine works normally and there is no obvious change on the surface. | |
| Communication protocols | PELCO_D | |
| Communications baud rate | 9600 bps (2400 / 4800 / 9600 / 19200 bps settable) | |
| Communications interface | RJ45 (RS485 / RS422 / RS232 / RJ45 optional) | |
| Input Power Range | DC48V | |
| Operating temperature | -25°C to +55°C, 90% ± 3%, non-condensing | |
| Storage temperature | -40ºC~+65ºC | |
| Load | ≥40Kg | |
| Weight | 85Kg | |
| Carrying method | Top load | |
| Transmission method | Servo motor | |
| Protection class | IP66 | |
