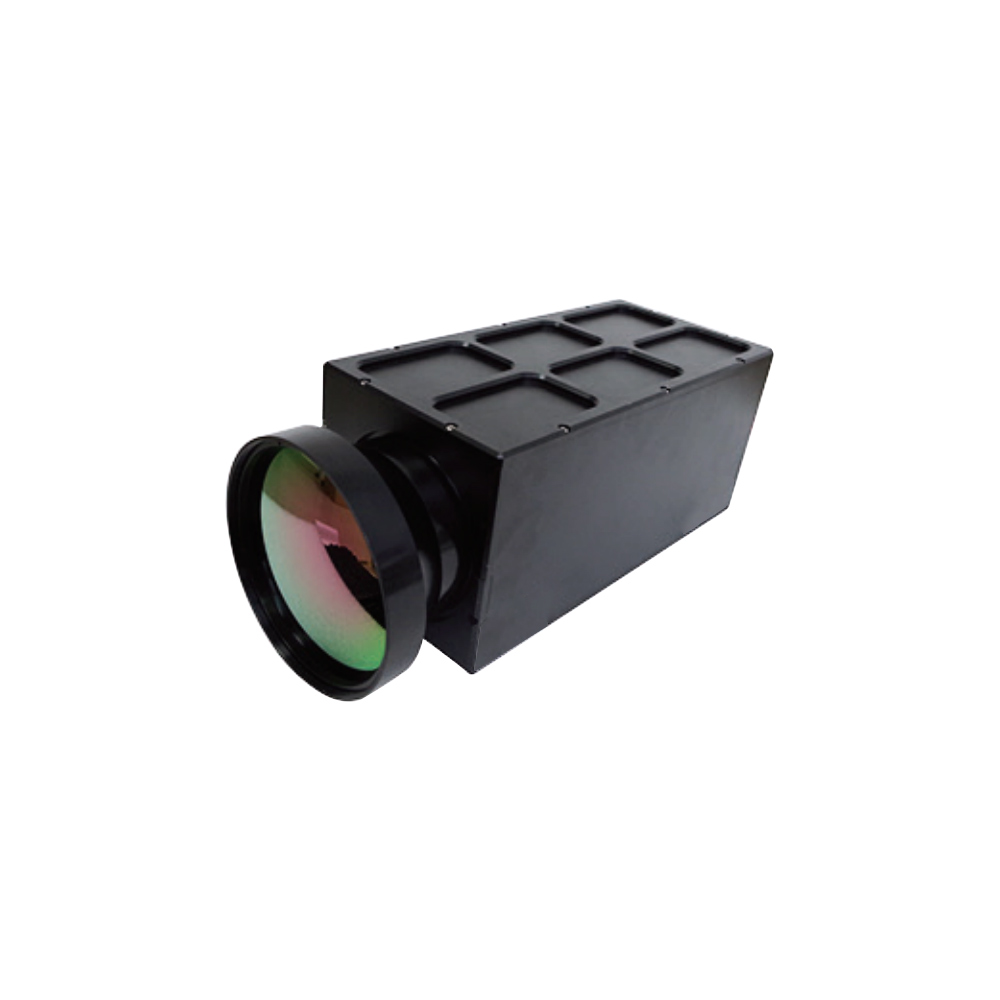

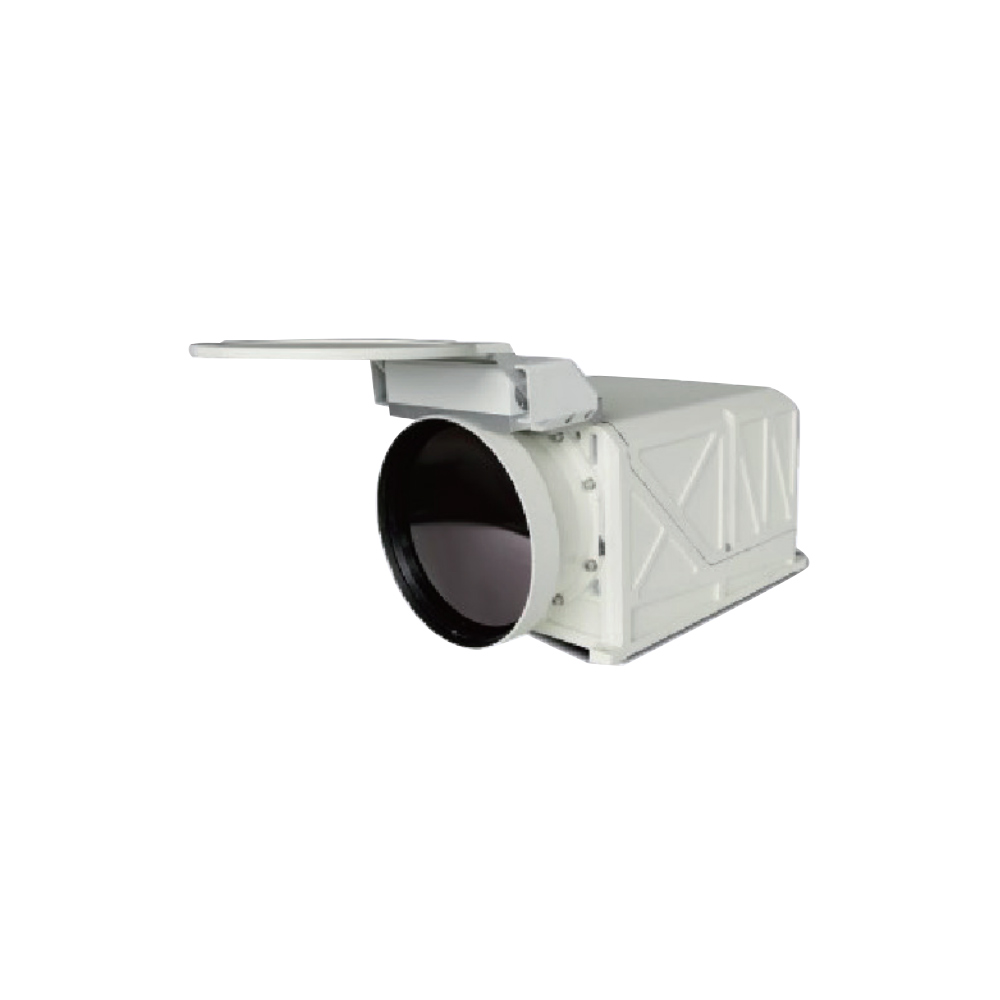

Ultra long range cooled IR thermal camera for harbor

Detection*

Vehicle: 12000m

Human: 4500m

Vehicle: 30000m

Human: 11000m

Vehicle: 30000m

Human: 11000m

Vehicle: 60000m

Human: 22000m

Identification*

Vehicle: 3100m

Human: 1200m

Vehicle: 7700m

Human: 3000m

Vehicle: 7700m

Human: 3000m

Vehicle: 15000m

Human: 6000m

Detector

FPA MCT detector

Cooling

Stirling cryocooler

Resolution

320x256

640x512

Pixel size

30um x 30um

15um x 15um

Spectral range

3.7 ~ 4.8um, NWIR

NETD

20mK(@25°C F2.0)

35mK(@25°C F4.0)

20mK(@25°C F4.0)

Lens

60/240m, F2.0

50/250/600mm, F4.0

15 ~ 300mm, F4.0

30 ~ 600mm, F4.0

FOV

Max.9.2°x7.3°

Max.11°x8.8°

Min.2.3°x1.8°

Medium2.2°x1.76°

Min.0.92°x0.73°

35°x28° ~ 1.8°x 1.46°

18°x13° ~0.9°x0.73°

Lens control

Motorized switch(less than 1s)
Manual/auto focus

Motorized zoom, auto/manual focus

Image processing

1. Starting time: less than 7mins (25°C)
2. Image enhancement: SDE

3. Color: White hot/Black hot
4. Brightness and contrast: AGC, adjustable

5. Digital zoom: 2X, 4X
6. Cross: display

7. Correction: Shutter/Background

Interface

1. Control: RS485/RS232(PELCO D, baud rate:2400bps/s)
2. Menu: OSD

3. Video: PAL
4. Power supply: DC24V

5. Connector: waterproof aviation connector

Environmental indicators

1. Enclosure: aluminum alloy, sealed
2. Working temp: -40° ~ 55°

3. Storage temp: -40° ~ 70°
4. Ingress protection: IP67

5. Power consumption: 15W(normal), 45W(peak)

Dimension

1. Weight: 8kg

1. Weight: 7kg

1. Weight: 5kg

1. Weight: 8kg

2. Dimension

420mm x 150mm x 180mm

2. Dimension

320mm x 235mm x 170mm

2. Dimension

250mm x 120mm x 100mm

2. Dimension

350mm x 230mm x 245mm
