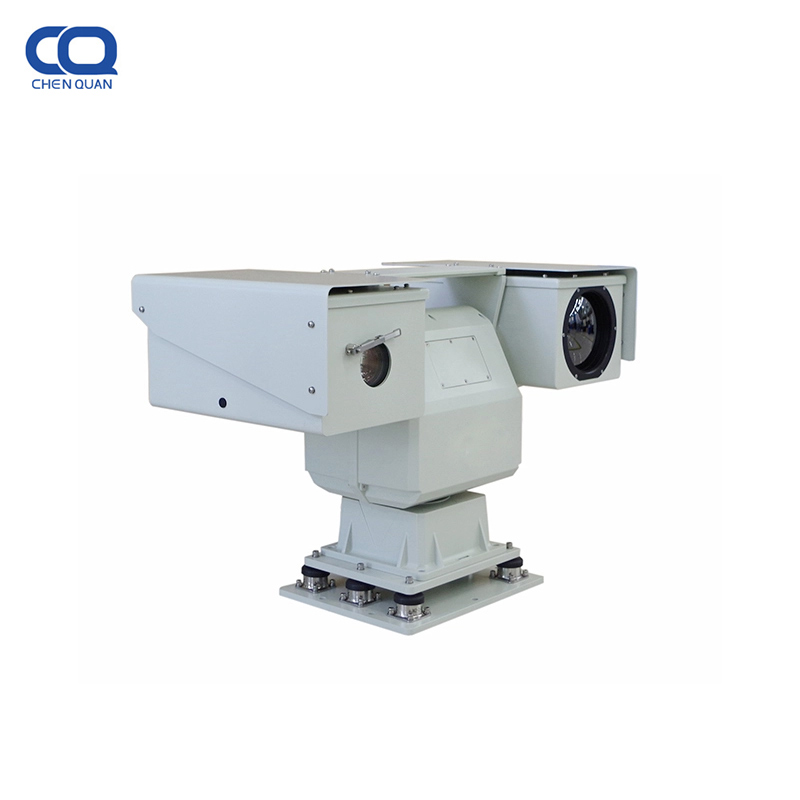

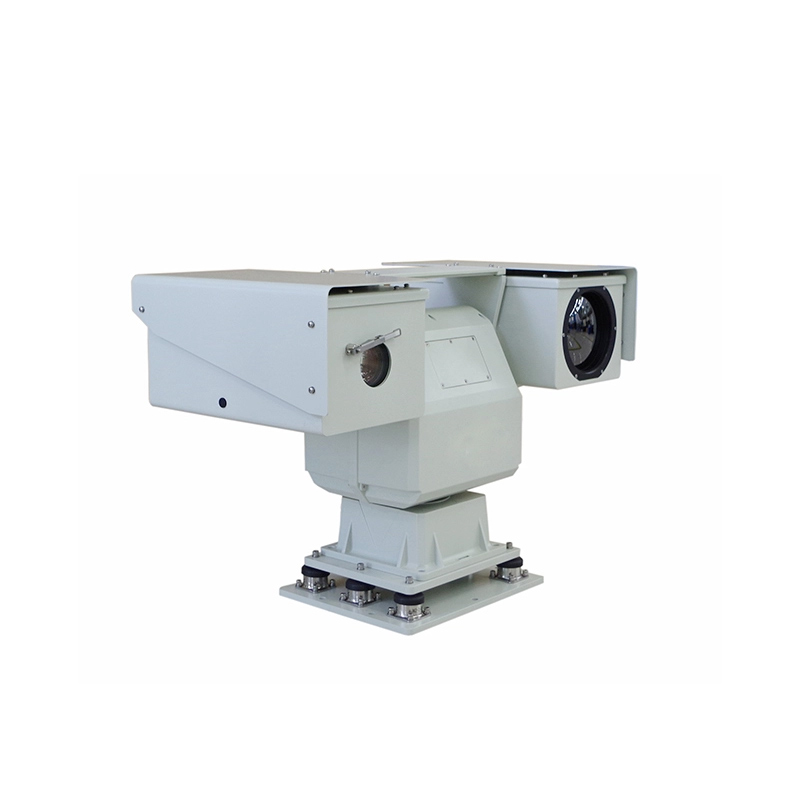

CQ-HTVC45C19-2132
Model | Hisen (CQ-TTVC45C19-2132) | ||
Effective Distance (DRI) | Vehicle (2.3*2.3m) | Detection: 16.4km; Recognition: 4.2km; Identification: 2.1km | |
Human (1.8*0.6m) | Detection: 5.8km; Recognition: 3.0km; Identification: 1.6km | ||
IVS Range | 5.8km for Vehicle; 2.1km for Human | ||
Thermal Sensor | Sensor | 5th generation uncooled FPA sensor | |
Effective Pixels | 384x288 50Hz | ||
Pixel Size | 12μm | ||
NETD | 40mK | ||
Spectral Range | 7.5 ~ 14μm, LWIR | ||
Thermal Lens | Focal length | 38-190mm 5X | |
FOV (640*512) | 7.1°x5.3°～1.4°x1.1° | ||
Angular radian | 0.32～0.06mrad | ||
Digital Zoom | 1~8X Continuously zoom (step:0.1) | ||
Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch | |
Resolution | 1920(H)x1080(V) | ||
Frame Rate | 32Kbps～16Mbps, 60Hz | ||
Min. Illumination | 0.05Lux(Color), 0.01Lux(B/W) | ||
Visible Lens | Lens size | 8~320mm 40X | |
Image Stabilization | Support | ||
Defog | Support | ||
Focus Control | Manual/Auto | ||
Digital Zoom | 16X | ||
Image | Image Stabilization | Support Electronic Image Stabilization | |
Enhance | Stable operational temperature without TEC, starting time less than 4 seconds | ||
SDE | Support SDE digital image processing | ||
Pseudo Color | 16 pseudo color and B/W, B/W inverse, Support image fusion | ||
AGC | Support | ||
Ranging Ruler | Support | ||
PIP | Support picture in picture | ||
Bad Point Correction | Support | ||
PTZ | Patrol | 16*patrol route, 256 Preset for each route | |
Patrol Mode | Preset position/pattern scanning/cruise scanning/vertical scanning/frame scanning/panoramic scanning/apple peel scanning/horizontal sector scanning | ||
Rotation | Pan: 0～360°, tilt: -45～+45° | ||
Speed | Pan: 0.01~30°/S, Tilt: 0.01~15°/S | ||
Preset | 3000 | ||
Enhance | Fan/Wiper/Heater attached | ||
Interface | Ethernet | RS-485 (PELCO D protocol, baud rate 2400bps), RS-232 (option), RJ45 | |
Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | ||
Video Output | PAL/NTSC | ||
Power | AC12V / DC24V | ||
Compression | H.265 / H.264 / MJPEG | ||
Environmental | Operate Temp | -25℃～+55℃（-40℃ optional） | |
Storage Temp | -35℃～+75℃ | ||
Humidity | <90% | ||
Ingress Protect | IP66 | ||
Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | ||
Anti-fog/salty | PH 6.5～7.2 | ||
Lightning Proof | 6000V | ||
Power | 120W (Peak) | ||
