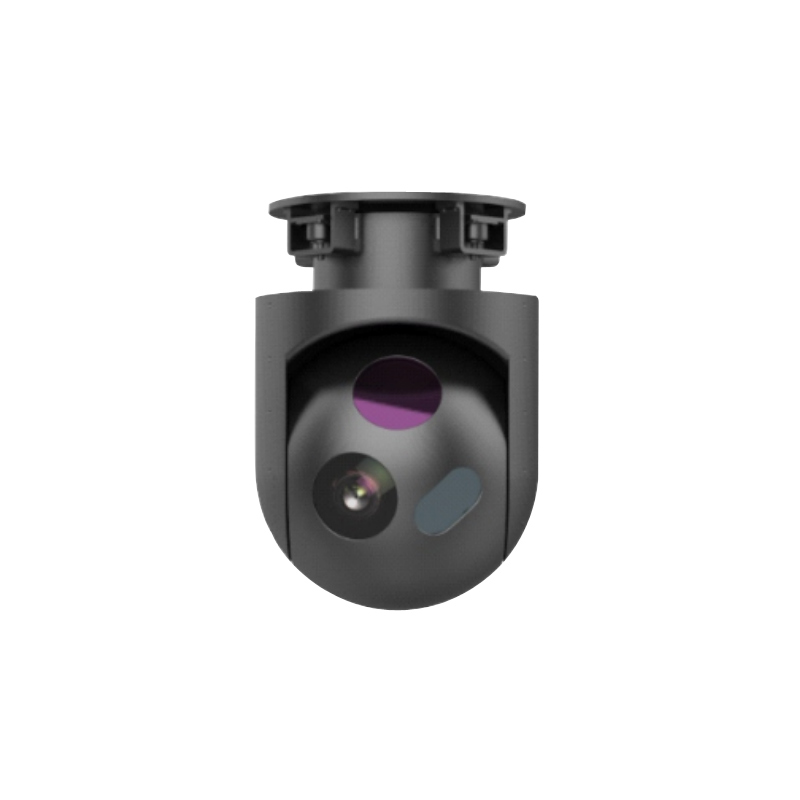

CQ-S2180T
Product Features:
Ø Ability to move in two degrees of freedom, azimuth and pitch;
Ø Ability to isolate carrier disturbance and stabilize the aiming line;
Ø MWIR and EO multi-band detection; can output infrared image and EO image, and can measure the target range;
Ø With target automatic tracking function;
Ø Receive the control command from host computer system, and control the gimbal’s direction & scanning, target locking/unlocking, target ranging, zooming and so on;
Ø Provide infrared image, EO image, target distance, system working state, camera operational state, optical axis position and angular velocity information to the host computer system;
Ø Automatic detection and fault reporting;
Ø Image recording function (pending);
Ø Provide SDK package of host computer for secondary development.
Ø Mounted on large drones, aircraft, ship etc.
Model | CQ-S2180T | |
Infrared Camera | Detector Resolution | 640×512 |
Pixel Size | 15um | |
Working Band | 3μm ~ 5μm | |
Focal Length | 30-300mm continuous zoom | |
Frame Rate | ≥50Hz | |
FOV | 18.3°×14.6° ~ 1.83°×1.46° (horizontal x vertical, deviation 5%) | |
EO Camera | Resolution | 1920×1080 |
Focal Length | 4.3 ~ 129mm | |
FOV | 63.7° ~ 2.3° | |
Optical Magnification | 30x | |
Zoom Method | Autofocus | |
Laser Rangefinder | Working band | 1.55μm |
Range | 100 ~ 5000m (visibility≥15km) | |
Ranging Accuracy | ≤5m | |
Repetition rate | ≥5Hz | |
Servo Platform | Frame Angle Range | Azimuth: 360°×n, Pitch: -80° ~ +50° |
Stability Accuracy | ≤0.1mard (1σ) | |
Maximum Angular Velocity | azimuth ≥ 60°/s, pitch ≥60°/s | |
Maximum Angular Acceleration | azimuth ≥100°/s², pitch ≥100°/s² | |
Angular Measurement Accuracy | ≤1mard(1σ) | |
System Parameters | Supply Voltage | 28VDC±4V |
Power Consumption | Normal: ≤100W, Peak: ≤300W | |
Weight | ≤25kg | |
Measurement | ≤281mm × 281mm × 401mm | |
Control Interface | RS422 | |
Video Output Interface | 2-channel SDI / FE(Fast Ethernet) | |
Environmental Adaptability | Operating Temp. | -40°C ~ +55°C |
Storage Temp. | -40°C ~ +60°C | |
