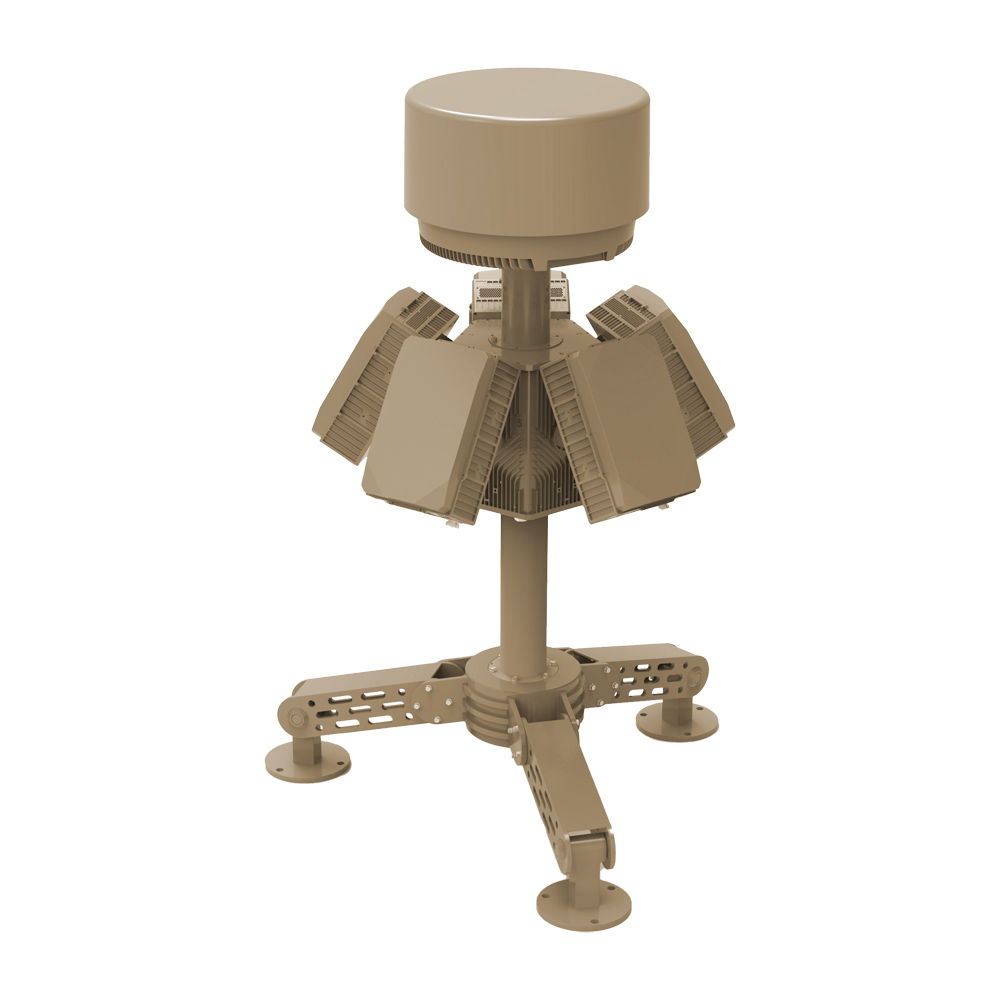

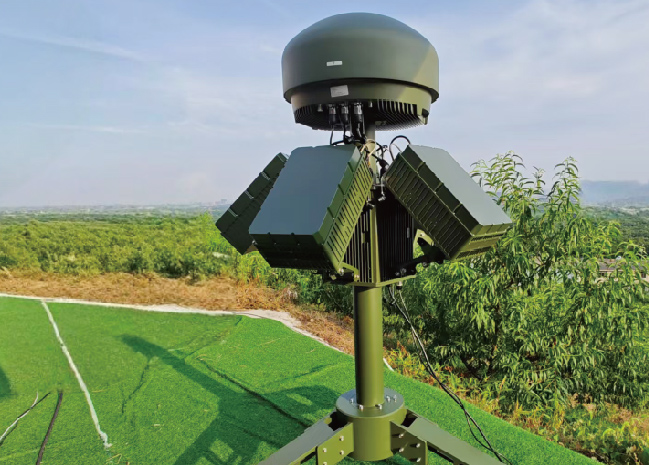

3 in 1 10km Detection 3km Jammer 3km Spoof Fixed Anti Drone System

Availability:

Quantity:



Inquire

Model:
CQ-D10J3S3M50-F

Product Description

The 3 in 1 fixed multi-mission defender combines drone detection, jamming and deception functions, supporting omnidirectional 360° or directional precise interference. A single device can perform drone detection, attack, and deception functions.

The detection system uses spectrum recognition and protocol analysis to perform real-time analysis of drone radio signals across the entire 300MHz to 6000MHz spectrum, completing functions such as feature extraction and target identification.

The jamming system disrupts the drone's control link, video transmission link, or navigation link by transmitting radio signals, causing the drone to return to base, land, or hover, preventing it from entering the controlled area.

The deception system transmits simulated satellite navigation signals to alter the target drone's navigation control system's positioning information, changing the positioning results and inducing the target to make incorrect responses, causing it to move away from the restricted area in a specified direction, or to misjudge its position and land nearby or be guided to a designated location.

It can be flexibly deployed on fixed positions or mobile platforms according to needs, adapting to various application scenarios.

Feature:

Integrated d etection, j amming and d eception: Integrates detection, localization, tracking, countermeasures, and deception into a single device, completing the entire drone control process;

Offline c ountermeasures: Without external detection support, a single device can perform direction finding and jamming of commercial drones;

Full f requency b and c overage: Customizable scanning from 300MHz to 6000MHz, covering a wide range of frequencies to meet the identification needs of various drones in multiple scenarios. Optional frequency band of 20-6000Mhz and 20-8000Mhz are available;

P recise i dentification: Can identify DJI series drone models, RID models, including brand, model, SN number, frequency point, azimuth, and the location of the drone and pilot;

Rapid r esponse: Multi-channel spectrum scanning technology provides faster detection response time for quick discovery and early warning;

Multiple d rone m odel r ecognition: Can identify over 800 drone models, including mainstream drones from DJI, Autel, Hubsan, Xiaomi, etc., and is compatible with some frequency-hopping and FPV drones;

Automatic d atabase c reation: Possesses the capability to expand the drone spectrum characteristic database, supporting manual or automatic signal acquisition on-site and adding them to the characteristic database;

Long i nterference r ange: Uses a high-gain multi-array combination to achieve long-range omnidirectional suppression;

Communication i nterference: Can interfere with drone remote control and video transmission signals, cutting off communication between the remote controller and the drone;

Navigation i nterference: Capable of suppressing satellite navigation receivers such as GPS, GLONASS, BSD, Galileo, and QZSS, causing them to lose satellite navigation capabilities;

Configurable interference frequency bands: Capable of transmitting interference signals in individual or multiple frequency bands simultaneously, with the occupied frequency band and bandwidth of the interference source being software-configurable;

Navigation spoofing: Possesses the ability to transmit different types of spoofing signals to achieve effects such as drone expulsion, forced landing, and hovering;

Multi-satellite coverage: Supports spoofing frequency points covering various navigation signals such as GPS, GLONASS, BDS, and GALILEO, ensuring effectiveness against various types of drones;

Comprehensive spoofing algorithms: Supports multiple spoofing algorithms including expulsion, forced landing, area denial, and fixed-point capture;

Frequency domain protection: Each interference channel supports "windowing" within the frequency band, preventing interference to frequencies within the window, effectively avoiding interference with other wireless devices;

High-performance design: Utilizes high-quality components and optimized electromagnetic compatibility design to create a high-end integrated body;

Information reporting: Supports customized reporting of the device's own location and switch status, and supports remote control;

Environmental adaptability: The device is waterproof and dust-proof.

Application:
Suitable for low-altitude surveillance of urban areas, including security monitoring of critical locations such as airports, high-speed rail stations, power plants and transportation hubs.

Model	CQ-D10J3S3M50-F
Operating Mode	Passive radio detection + wireless jamming + navigation spoofing integrated
Detection Targets	UAV uplink and downlink control links, UAV broadcast message identification
Identification Modes	Spectrum analysis, DJI Drone ID, Remote ID, various WiFi drones

Detection
Frequency Range	300MHz ~ 6000MHz	20MHz ~ 6000MHz	20 ~ 8000Mhz
Detection Radius	3 ~ 10km (varies depending on wireless environment and device model)
Detection Angle	Horizontal: 360°, Elevation: -20° ~ 70° (accurate direction finding), Elevation: -70° ~ 90° (accurate identification)
Real-time Scanning Bandwidth	≥120MHz
Detection Azimuth Accuracy	≤3° (RMS) above 2GHz, ≤5° (RMS) below 2GHz
Positioning Accuracy	2m (broadcast message parsing mode); 10 ~ 100m (multi-unit cross-positioning)
Number of Multiple Target Detection	≥40
Detection Response Time	≤2s

Jammer
Operating Frequency Bands	360MHz ~ 800MHz, 800MHz ~ 1240MHz, 1360MHz ~ 1800MHz, 2310MHz ~ 2750MHz, 5100MHz ~ 5540MHz, 5540MHz ~ 5980MHz
Target Aircraft	Commercial drones and some FPV drones
Jamming Distance	0 ~ 3km (open, unobstructed environment, DJI Mavic 2 Drone (3km))
Interference Response Time	≤5s
Antenna Angle	5-sided array achieves omnidirectional effect, horizontal 360°
Jamming Type	SDR digital source configurable interference

Spoof
Spoofing Frequencies	GPS L1C/L2C/L5, BDS B1/B2, GALILEO E1, GLONASS G1/G2, QZSS L1
Spoofing Range	≥3km (open, unobstructed environment, target aircraft DJI Mavic 3)
Decoy Function Angle	Horizontal 360°, Vertical ±90°
Decoy Response Time	≤10s

Positioning Function	Built-in BDS positioning module, positioning via GNSS
Continuous Working Time	7*24h
Power-on Start Time	5 min
Communication Method	RJ45 network port communication
Operation Method	Remote operation
Power Supply	AC220V
Total Power Consumption	≤3000W
Mean Time Between Failures (MTBF)	3000h
Mean Time To Repair (MTTR)	1h
Operating Temperature	-40ºC ~ +60ºC
Storage Temperature	-45ºC ~ +70ºC
Protection Rating	IP66
Dimensions	φ1435mm x 1950mm
Weight	≤137kg (excluding power adapter)
