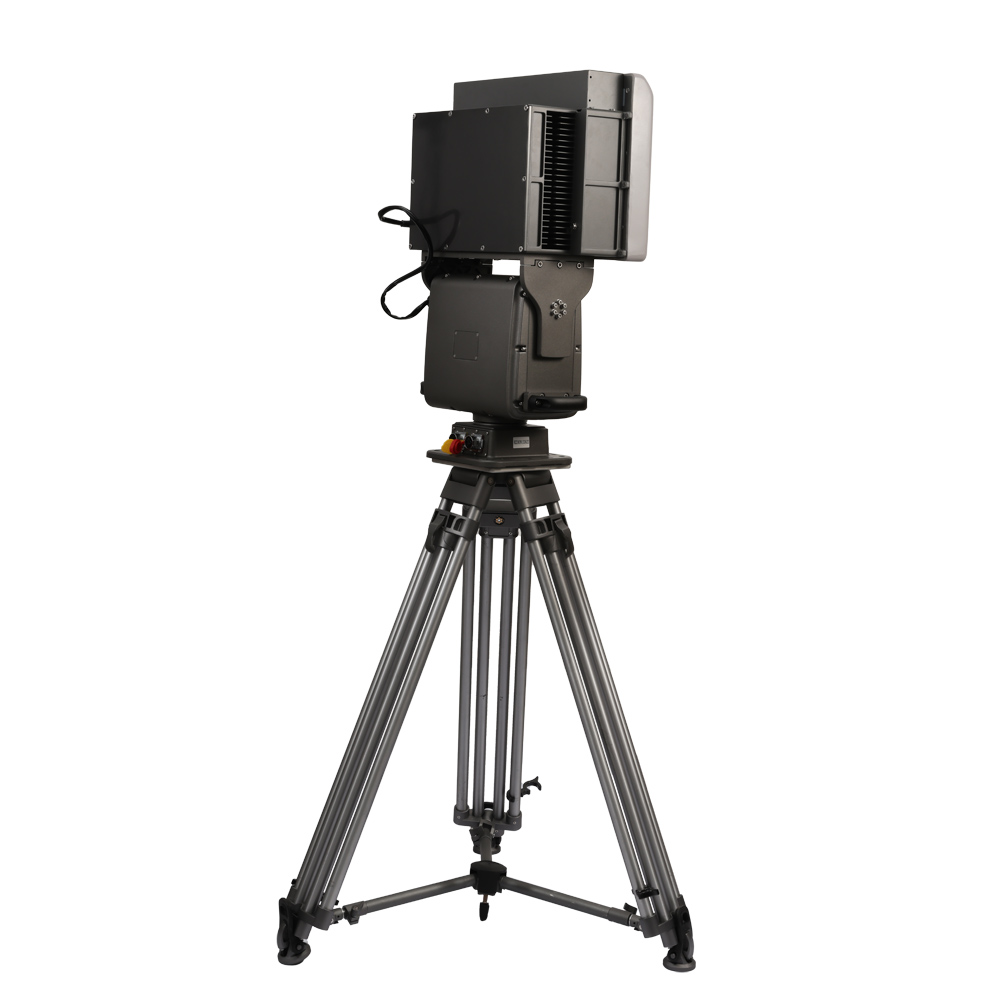

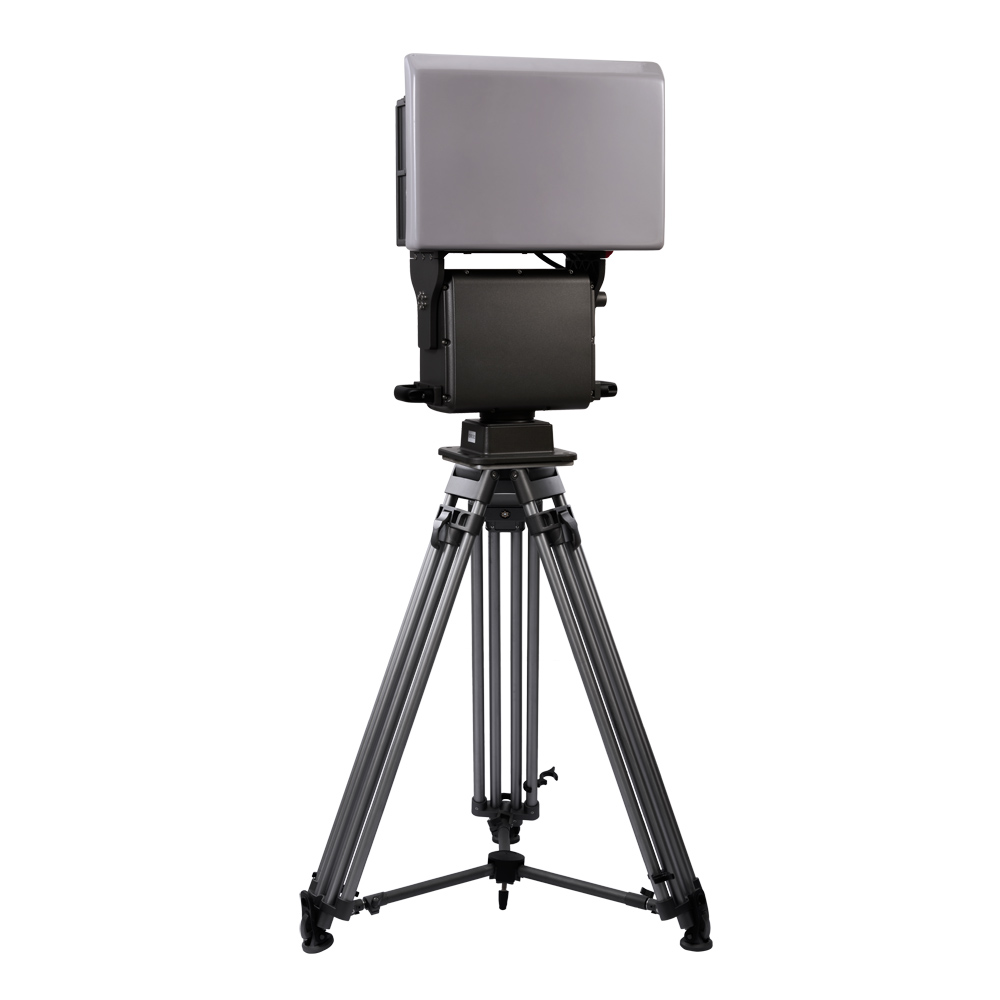

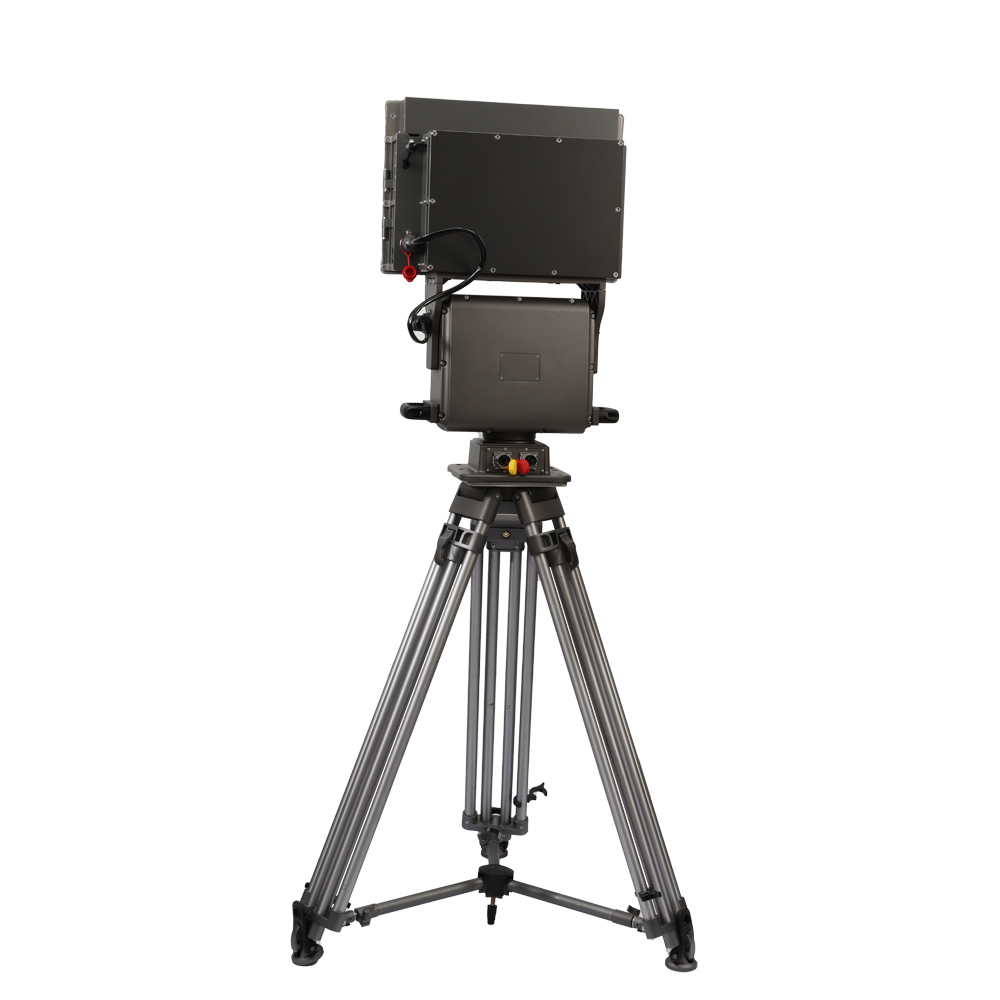

3km Counter Drone Disrupt Control Video Transmission Navigation Links Directional Jammer

Availability:

Quantity:



Inquire

Model:
CQ-JJ10-F

Product Description

The fixed directional jammer disrupts the control, video transmission, and navigation links of drones by emitting radio signals, causing them to lose control, hover, or be driven away, thus preventing them from entering controlled areas.

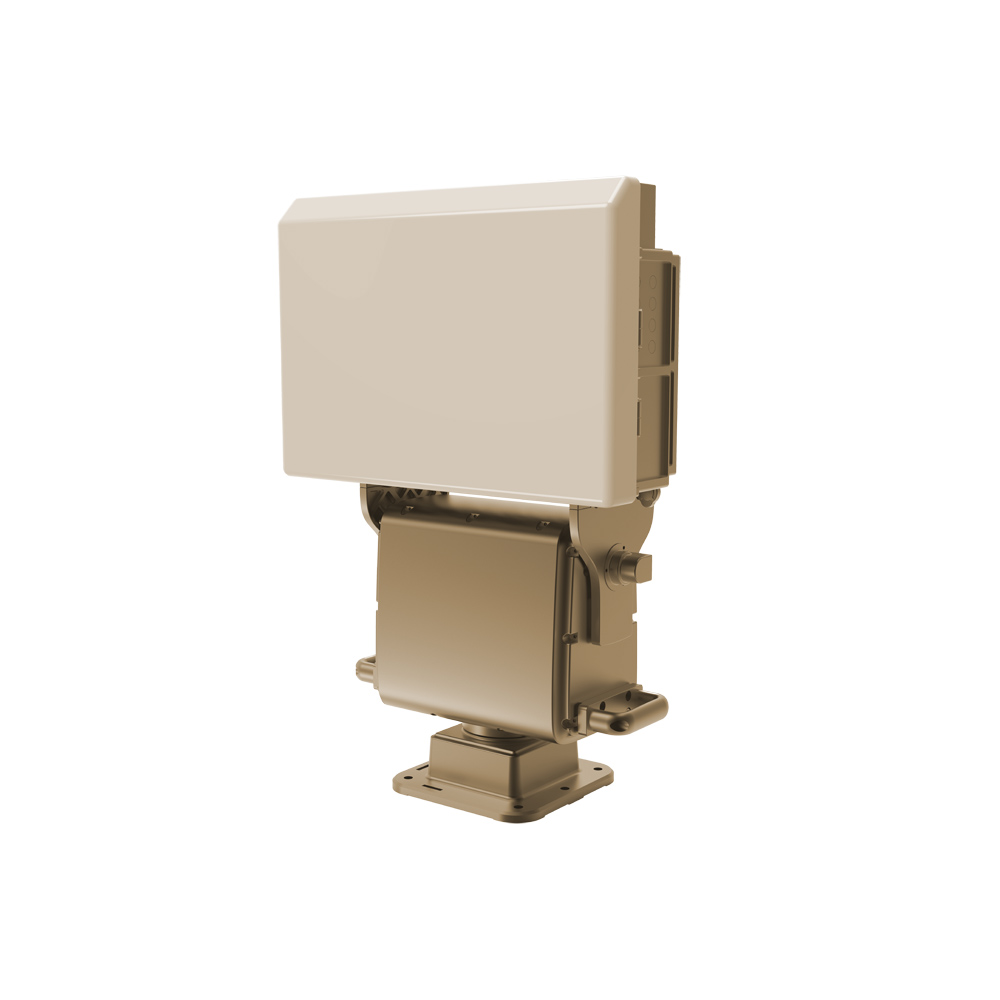

Based on a digital source hardware platform and power amplifier, the device can achieve 360° omnidirectional target engagement with a directional antenna and a servo turntable. The device is flexible in deployment and can meet the needs of various application scenarios in all weather conditions.

Feature:

Full Airspace Coverage: Wide beam antennas combined with a servo turntable enable full airspace coverage;

Communication Jamming: It can jam drone remote control and video transmission signals, severing communication between the remote controller and the drone;

Navigation Signal Interruption: The operating frequency range includes different types of navigation systems such as GPS, GLONASS, BeiDou, and Galileo;

Stable Interference: Using a digital signal source scheme, the output signal is stable with no frequency deviation, allowing for continuous operation over extended periods;

Selectable Interference Frequency Bands: It can transmit interference signals in individual or multiple frequency bands simultaneously;

Turntable Tracking: High-speed turntable drive, combined with detection and positioning equipment, enables 360-degree target tracking.

Application:
Suitable for City-wide low-altitude surveillance, including security for key locations such as airports, high-speed railway stations, power parks, and transportation hubs.

Model	CQ-JJ10-F
Working Frequency	CH1:400MHz~450MHz CH2:840MHz~928MHz CH3:1160MHz~1250MHz CH4:1350MHz~1470MHz CH5:1550MHz~1620MHz CH6:2400MHz~2485MHz CH7:5725MHz~5850MHz CH8:5140MHz~5320MHz CH9:5360MHz~5945MHz

Jamming Radius	≥3km (open, unobstructed environment, target drone: DJI Mavic 2)
Jamming Response Time	≤3s
Antenna Angle	Horizontal Angle: 30° above 2GHz, 75° below 2GHz; Vertical Angle: 20° above 2GHz, 65° below 2GHz
Turntable Rotation Angle	Horizontal: 360°, Vertical: -10° ~ 60°
Turntable Rotation Speed	Horizontal: 0.02° ~ 30°/S, Pitch: 0.02° ~ 12°/S
Interference Frequency Band Combinations	Supports using a single frequency band individually, or selecting multiple frequency bands for simultaneous use.
Interference Type	Digital source interference mode, no frequency offset
Continuous Working Time	7*24h
Communication Method	RJ45 network port communication
Power Supply	AC220V
Power Consumption	≤600W
Mean Time Between Failures (MTBF)	3000h
Mean Time To Repair (MTTR)	1h
Operating Temperature	-40ºC ~ +60ºC
Storage Temperature	-45ºC ~ +70ºC
Protection Rating	IP66
Dimensions	470mm250mm701mm
Weight	≤41kg
